TiAL Sport MV-R 44mm Wastegate
The MV-R 44mm wastegate is more compact than any current 44 or 46mm wastegate on the market.
$423.59
-
California Residents: Prop 65 Warning
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | N/A |
| Color | Black, Silver, Red, Blue, Purple |
CARB And / Or EPA Compliance Testing Not Completed
While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.
With 22 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.
The MV-R 44mm wastegate is more compact than any current 44 or 46mm wastegate on the market. You get two top air ports and three bottom air ports for easy install. This unit is a direct bolt on for our V44. The MV-R has an optional extreme high temp casting available for Motorsport applications.
Specifications
- High temp NiCrFe based alloy valve and 316SS valve housing offer longer product life compared to competing designs.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature and resists “relaxing” up to 900F (483C).
- Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L
- Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).
- 3 lower ports and two top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.
- Ultra compact design fits in very tight spaces
- V-Band inlet and outlet make install easy, flanges and clamps are in the box!

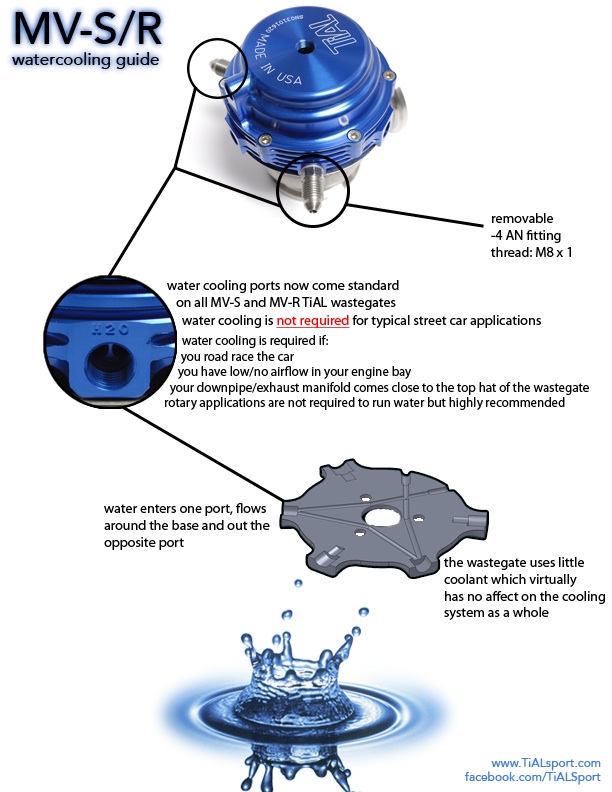

- Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep the temperatures down in extreme conditions such as road racing. These are leak tested after installation from the factory and can be removed if not utilized.
- Extreme high temp casting available for Motorsport applications
- Optional valve position sensor available for purchase in a MV-R assembly or in an actuator kit to adapt to standard MV-R. See images below for reference.
Whats in the Box
- MV-R Assembly
- 2 TiAL -4 removable water fittings
- MV-S Valve Seat
- Inlet V-band clamp & Flange
- Outlet V-Band Clamp & Flange
- 2 TiAL Air Fittings
- Plugs for unused air ports
- Extra springs for .2 bar to 1.5 bar settings
Configuration
| MV-R | Option |
| Flange Materials | 304L Stainless |
| Pipe Size | Inlet Flange: 1.875″ OD Outlet Flange: 1.75″ OD |
| Colors | Black, Blue, Red, Purple, Silver |
| Spring Pressures | All Springs Included (.2 bar to 1.5 bar) |
| Thread | Air Ports (5): M10 x 1.0, Water Ports (2): M8 x 1.0 |
| Valve Position Sensor | Option available in full wastegate assembly or actuator top kit to convert standard MV-R |
