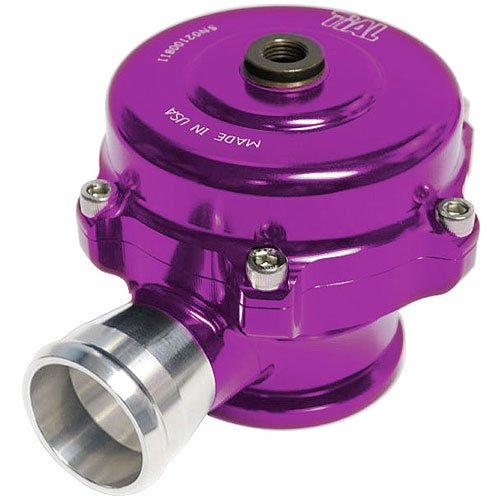

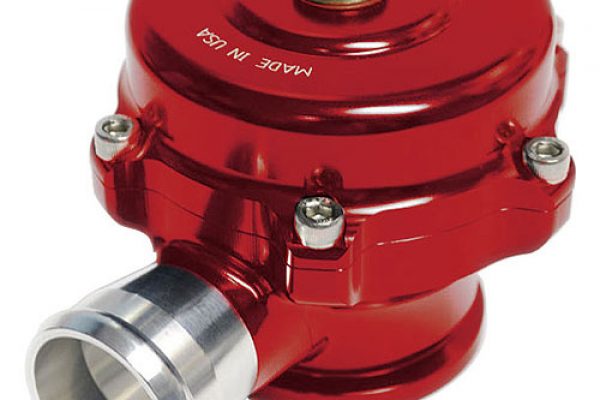

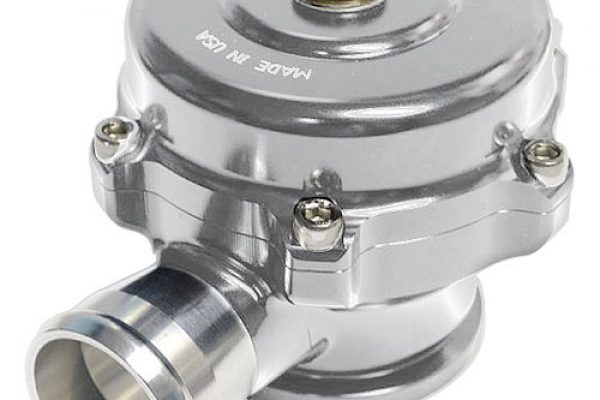

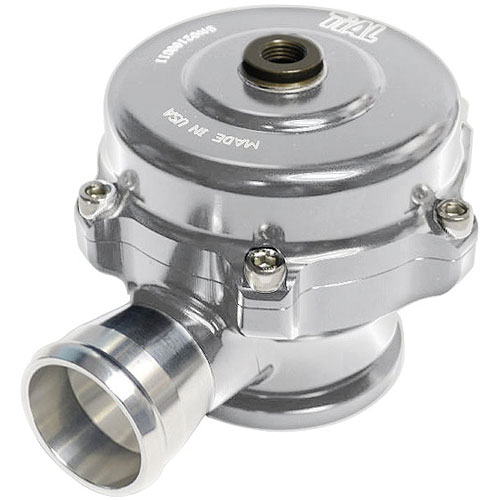

TiAL Sport QR 50mm Blow Off Valve (BOV)
QR is the recirculating valve based on the TiAL high performance Q. Outline interchangeable with the Q and original BV50. It’s Offered with a variety of springs for difference vacuum levels, and a special spring for supercharged vehicles. Customizable outlet ports offer flexibility to integrate into custom & existing applications.
$265.19
-
California Residents: Prop 65 Warning
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Color | Black, Silver, Red, Blue, Purple |
CARB And / Or EPA Compliance Testing Not Completed
While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.
With 22 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.
QR is the recirculating valve based on the TiAL high performance Q. Outline interchangeable with the Q and original BV50. It’s Offered with a variety of springs for difference vacuum levels, and a special spring for supercharged vehicles. Customizable outlet ports offer flexibility to integrate into custom & existing applications.
Specifications
- QR is a recirculating valve based on the high performance TiAL Q.
- Optional 25.4mm (1.00″), 29mm (1.14″) GTR, 34mm Subaru/evo/dsm or 38.1mm 1.50″ recirculation port.
- Uses the standard TiAL V-band flange and can be converted into a standard Q BOV by swapping the bottom piece.
- For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 in (50.5mm) valve.
- The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
- The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
- The Blow Off Valve also comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
- An aluminum or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.
- Color anodized aluminum options (Silver, Red, Blue, Purple, Black).
- -2psi spring for supercharged applications

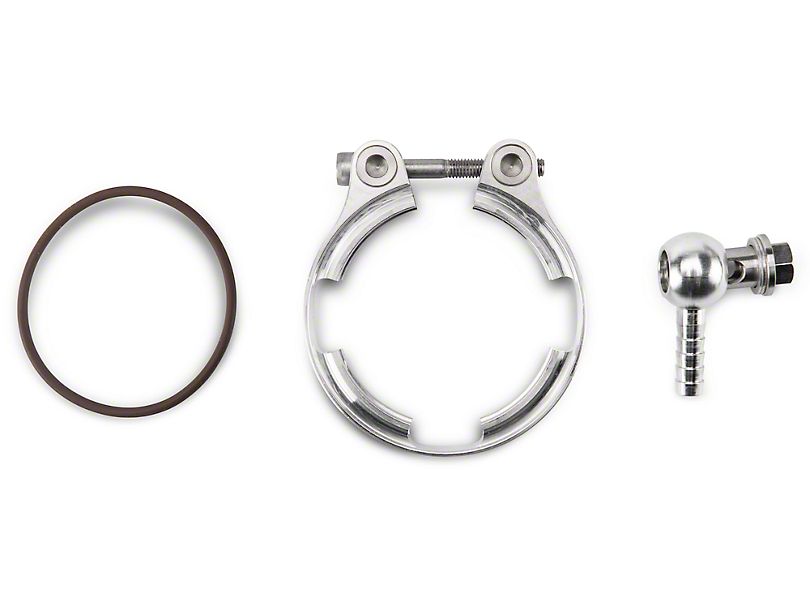

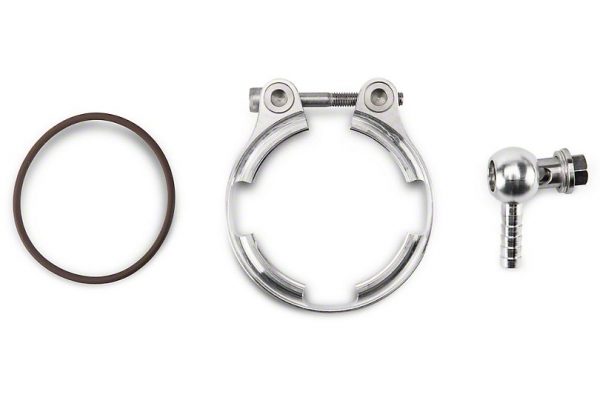

Included
- QR Assembly
- TiAL Vband Clamp
- Vband Weld Flange
- TiAL Air Fitting
- High Pressure O-ring
Available Colors
- Silver
- Black
- Red
- Purple
- Blue
TiAL V-Band Clamp
- TiAL Designed V-Band Clamps are manufactured in house.
- CNC machined aluminum clamps ensure a secure and pressure tight fit.
Configuration
| QR BOV | Option |
| Flange Materials | Aluminum, Mild Steel, Stainless |
| Weld Flange Size | Flange cut for 2.5″ IC tube |
| Hose Size | 25.4mm(1″), 29mm, 34mm, 38.1mm(1.5″) |
| Colors | Black, Blue, Red, Purple, Silver |
| Spring Pressures | -2psi(S/C), -6psi, -8psi, -10psi, -11psi, -12psi |
| Thread | M10 x 1.0 |
