AMS Mitsubishi Lancer Evolution VIII/IX 4G63 Fuel Rail

The AMS Mitsubishi Lancer Evolution IV-IX Fuel Rail provides increased fuel flow which is necessary at higher boost levels.

$139.95

-

SKU AMS.01.07.0102- Categories , Brand:

California Residents: Prop 65 Warning

Additional information

Weight 3 lbs
Dimensions 18 × 8 × 6 in
Color

,

CARB And / Or EPA Compliance Testing Not Completed

While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.

FREE SHIPPING on all orders over $199.99 in the lower 48. (Exclusions Apply)

With 23 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.

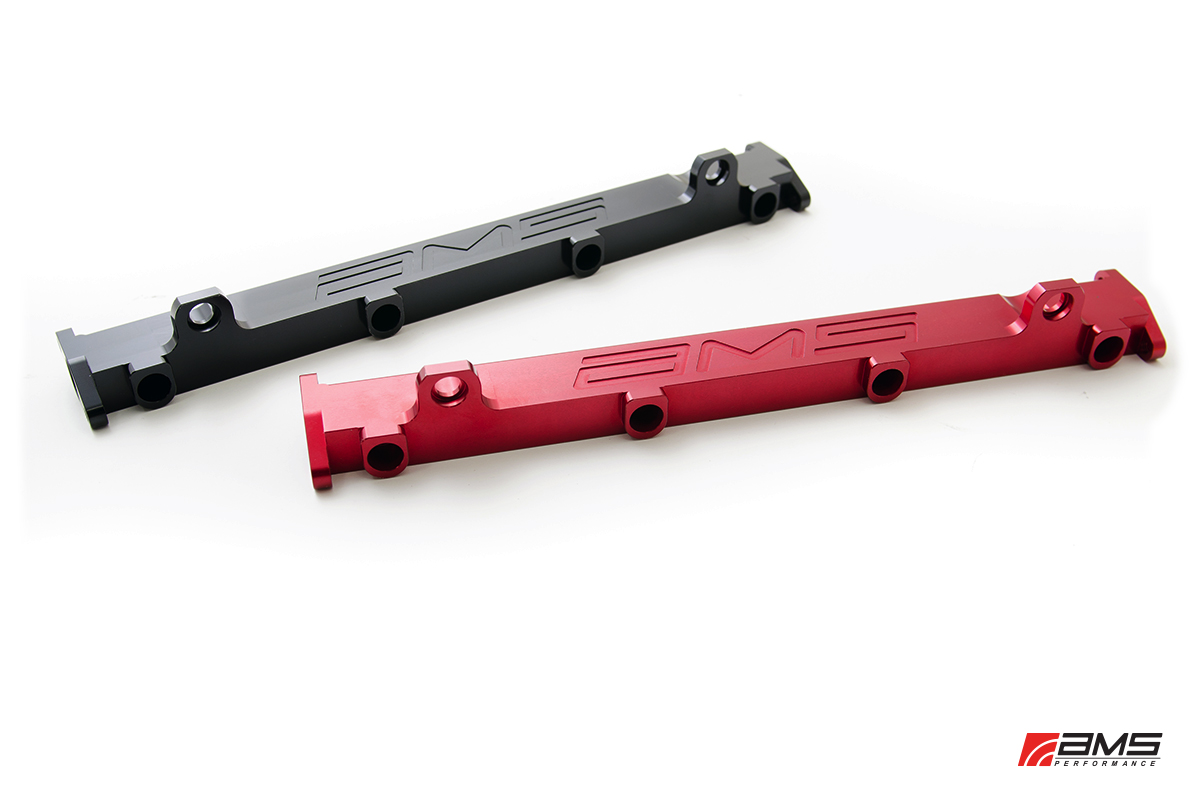

The AMS EVO IV/V/VI/VII/VIII/IX Fuel Rail provides increased fuel flow which is necessary at higher boost levels. This CNC’d aluminum rail comes anodized in Red, Black or Silver and includes our signature AMS turbo logo. With a 13mm diameter inlet and outlet it dwarfs the stock rail by over 160% in flow area. This is true bolt on part that will install with your factory fuel lines, fuel pressure regulator and works with all factory style fuel injectors. In addition it comes with a 1/8” NPT port where you can mount a fuel pressure gauge or use it for an auxiliary fuel port.

Features

  • Precision CNC machined from 6061 billet aluminum
  • 13mm fuel inlet & outlet compared to stock at 5mm
  • Thick flanges and stations for durability and reliability
  • 1/8 NPT port with removable plug
  • Bolts directly to the factory fuel lines, no modifications needed
  • AMS Logo CNC’d into the face of the rail
  • Retains factory fuel pressure regulator
  • Works with all factory style fuel injectors

Includes

  • Fuel Rail

Specifications

  • CNC Machined 6061 billet aluminum
  • 13mm  fuel entry and return port
  • .25 inch thick flanges
  • 1/8” NPT Port with Removable Stainless steel plug

Applications

  • Mitsubishi Evolution 4, 5, 6, 7, 8, 9
  • GSR, MR, RS and SE
  • Fits all USDM, JDM and European Models

Product Notes

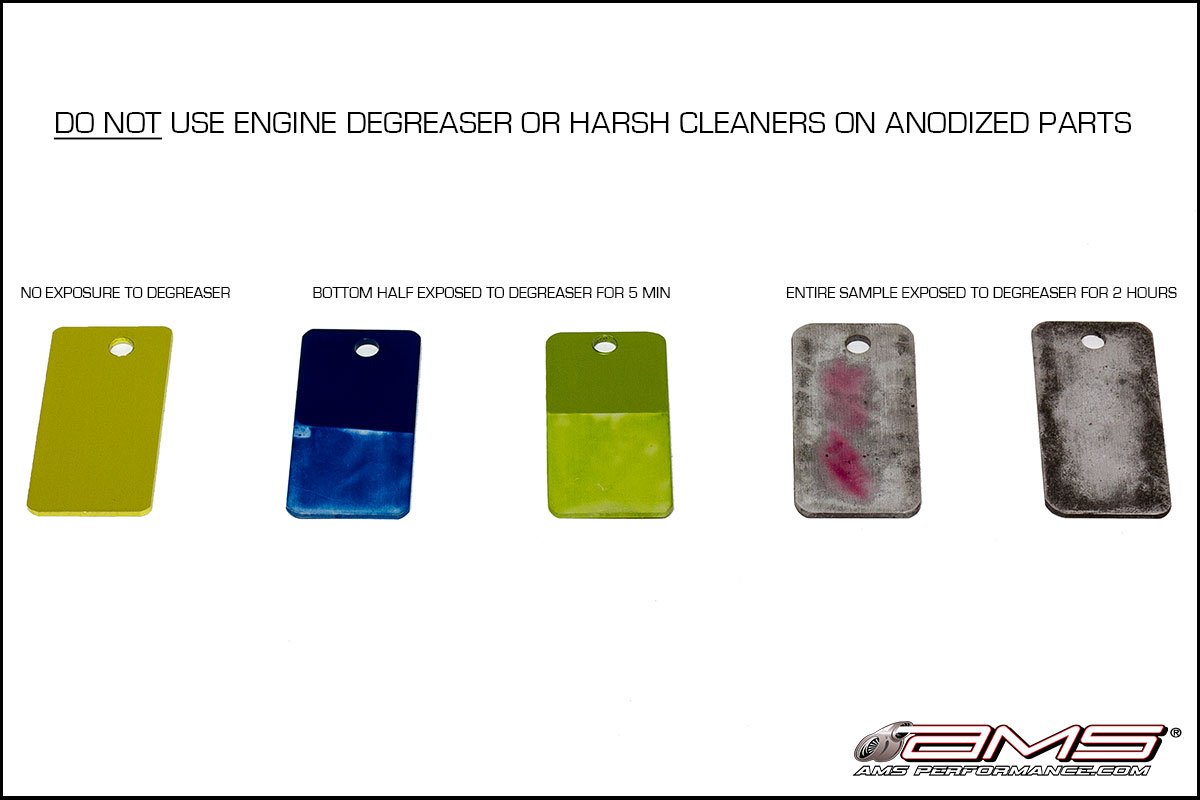

  • AMS does not recommend the use of any degreasers on anodized parts. If washing parts is needed we recommend using soap and water.
