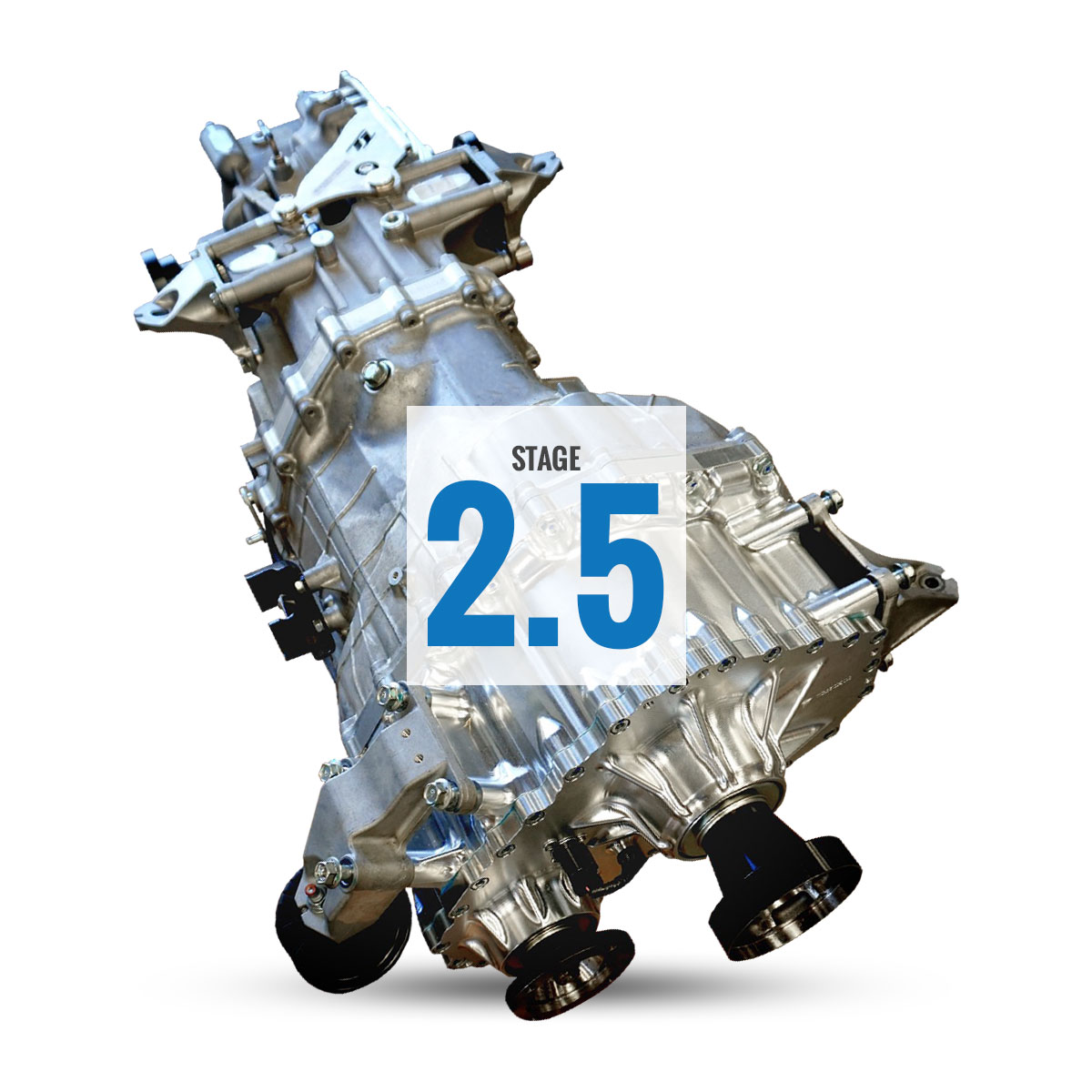

ShepTrans R35 GTR Transmission Rebuild Stage 2.5

$7,995.00

In Stock

-

SKU ALP.07.03.0004-1 Categories , Brand:

California Residents: Prop 65 Warning

Additional information

Weight 200 lbs
Dimensions 38 × 42 × 17 in

Non-Emissions Related

This product is either entirely unrelated to an emissions-controlled engine, or we believe this product does not affect vehicle emissions or any emission control devices on the vehicle it is intended for, that would be subject to any US State or Federal emissions standards. International users outside of the United States should act in accordance with their local laws and regulations.

FREE SHIPPING on all orders over $199.99 in the lower 48. (Exclusions Apply)

With 23 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.

ShepTrans Stage 2.5 Transmission Rebuild is rated for 900 lb-ft of torque*

Stage 2.5 Rebuild Includes:

  • Stage 2.5 v2
  • Dodson 1st Gear Set
  • Dodson/Exedy 8 Disc Clutch
  • Dodson Forged A Basket
  • Dodson Forged B Basket
  • Dodson Piston Shaft Seals
  • Sheptrans FWD (ETS) Billet Ball Retainer
  • Dodson FWD Retainer
  • Dodson Mechanical Lock #1
  • Dodson Mechanical Lock #2
  • Dodson O-ring and Seal Upgrade Kit
  • Dodson Oil Pump Shaft Upgrade with Blueprint
  • Dodson Output Shaft End Float Shim
  • Dodson 2,4,6 Thrust Bearing Circlip
  • Dodson 1,3,5 Thrust Bearing Circlip
  • Dodson Selector Piston Shims (x4)
  • Neodymium Magnets (x6)
  • Dodson High Temp Rear Differential Oil Seal
  • Dodson Stainless Re-usable Internal Filter
  • OEM FWD Output Seal
  • OEM Rear Differential Axle Seals
  • OEM Nissan Transmission and Rear Differential Drain Plug Gasket
  • OEM Nissan Transmission and Rear Differential Fill Plug Gasket

YEAR SPECIFIC REQUIRED UPGRADES

  • (3) Dodson Gear Selector Ring Upgrade (2009-2011) (+$1,050.00)
  • ShepTrans Viton Piston Seal Upgrade (2009-2011) (+$300.00)

OPTIONAL UPGRADES

  • Dodson H-D 2-6 Gearset (+$4,895.00)
  • Surge Plate (+$250.00)

PRODUCT NOTES

  • *Dodson H-D 2-6 Gearset upgrade highly suggested per ShepTrans
  • Assumes that a good condition core transmission is sent in to build from. To avoid confusion and the possibility of missing parts we ask that all transmissions are shipped to us fully assembled. Components that are not in reusable condition will have replacements quoted during the assembly process.
  • Required and/or optional upgrades are not included, will be quoted and billed separately.
  • Freight shipping cost is not included and will be calculated separately.
  • Build times vary for ShepTrans transmission rebuilds. Contact Sales Department for latest ETA

MUST SEND IN TRANSMISSION FOR REBUILD
