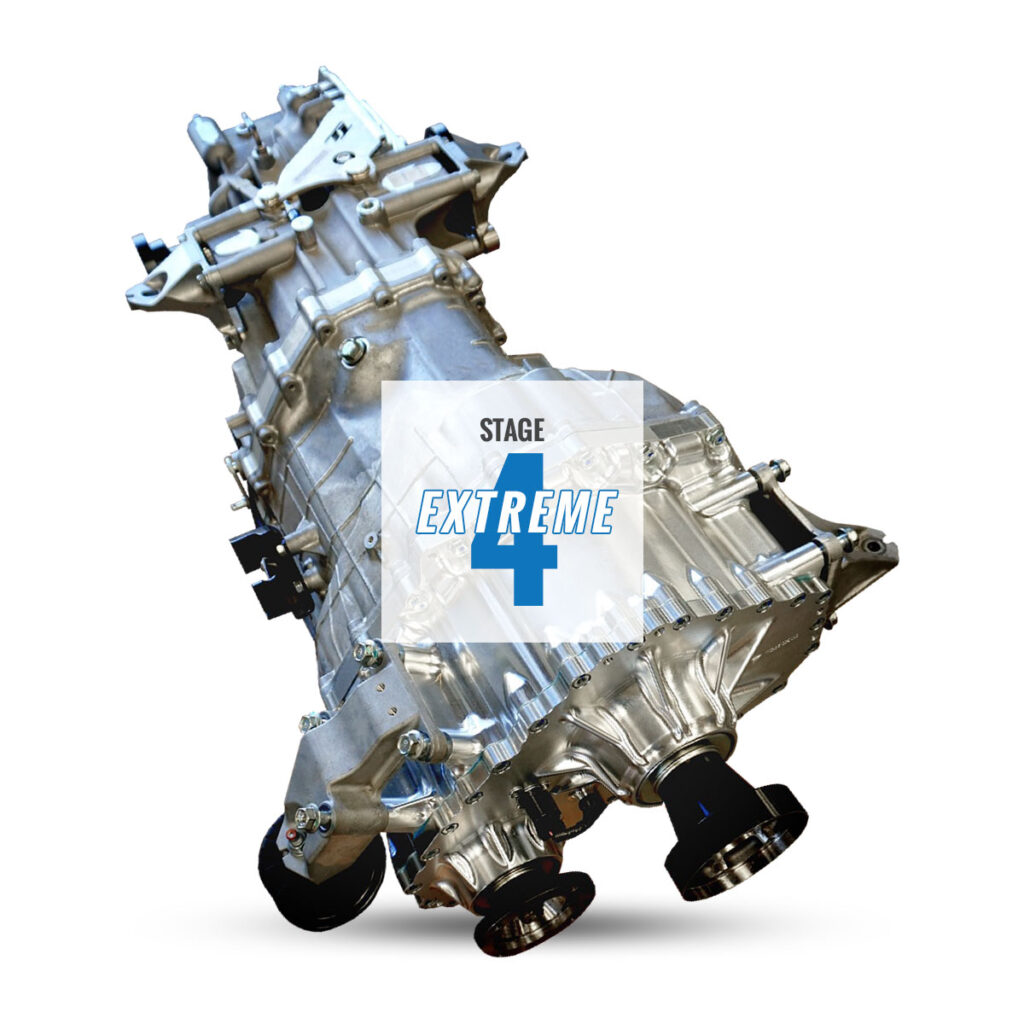

ShepTrans R35 GTR Transmission Rebuild Stage 4 Extreme

$24,895.00

In Stock

-

SKU ALP.07.03.0005-1 Categories , Brand:

California Residents: Prop 65 Warning

Additional information

Weight 200 lbs
Dimensions 38 × 42 × 17 in

Non-Emissions Related

This product is either entirely unrelated to an emissions-controlled engine, or we believe this product does not affect vehicle emissions or any emission control devices on the vehicle it is intended for, that would be subject to any US State or Federal emissions standards. International users outside of the United States should act in accordance with their local laws and regulations.

FREE SHIPPING on all orders over $199.99 in the lower 48. (Exclusions Apply)

With 23 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.

ShepTrans Stage 4 Transmission Rebuild is rated for 1,200 lb-ft of torque for the standard 10/10 or 1,300 lb-ft of torque for the upgraded 11/11 option

Stage 4 Extreme Rebuild Includes:

  • Dodson Extreme 1-6 Gearset
  • Dodson Pro Max Clutch/Alloy Version (10/10)
  • Dodson Heavy Duty Clutch Return Spring Retaining Clips
  • Dodson Piston Shaft Seals
  • Dodson FWD Gear Lock
  • Sheptrans FWD (ETS) Billet Ball Retainer
  • ShepTrans FWD Fluid
  • Dodson Mechanical Lock #1
  • Dodson Mechanical Lock #2
  • Dodson Selector Piston Shims (x4)
  • Dodson O-ring and Seal Upgrade Kit
  • Dodson Oil Pump Shaft Upgrade with Blueprint
  • Dodson Reusable Transmission Filter
  • Neodymium Magnets (x6)
  • Dodson High Temp Rear Differential Oil Seal
  • ShepTrans Billet Front Thrust Plate
  • OEM FWD Output Seal
  • Dodson 2,4,6 Thrust Bearing Circlip
  • Dodson 1,3,5 Thrust Bearing Circlip
  • OEM Nissan Transmission Pan Gasket
  • Transmission and Rear Differential Fill Plug Gasket (x2)
  • Rear Differential Drain Plug Washer
  • OEM Nissan Rear Differential Side Seals
  • GT1R Rear Differential Brace
  • ARP Rear Differential Bolt Upgrade
  • Dodson Surge/Baffle Kit
  • Dodson Billet Drag Pan Kit
  • Dodson Rear Reduction Gears (Drop Gears)

YEAR SPECIFIC REQUIRED UPGRADES

  • (3) Dodson Gear Selector Ring Upgrade (2009-2011) (+$1,050.00)

OPTIONAL UPGRADES

  • Upgrade to 11/11 Pro Max (+$325.00)
  • Wavetrac Rear LSD (+$1,995.00)
  • PRL Billet Rear Differential Cover w/ARP Hardware (+$975.00)

PRODUCT NOTES

  • Assumes that a good condition core transmission is sent in to build from. To avoid confusion and the possibility of missing parts we ask that all transmissions are shipped to us fully assembled. Components that are not in reusable condition will have replacements quoted during the assembly process.
  • Required and/or optional upgrades are not included, will be quoted and billed separately.
  • Freight shipping cost is not included and will be calculated separately.
  • Build times vary for ShepTrans transmission rebuilds. Contact Sales Department for latest ETA

MUST SEND IN TRANSMISSION FOR REBUILD
