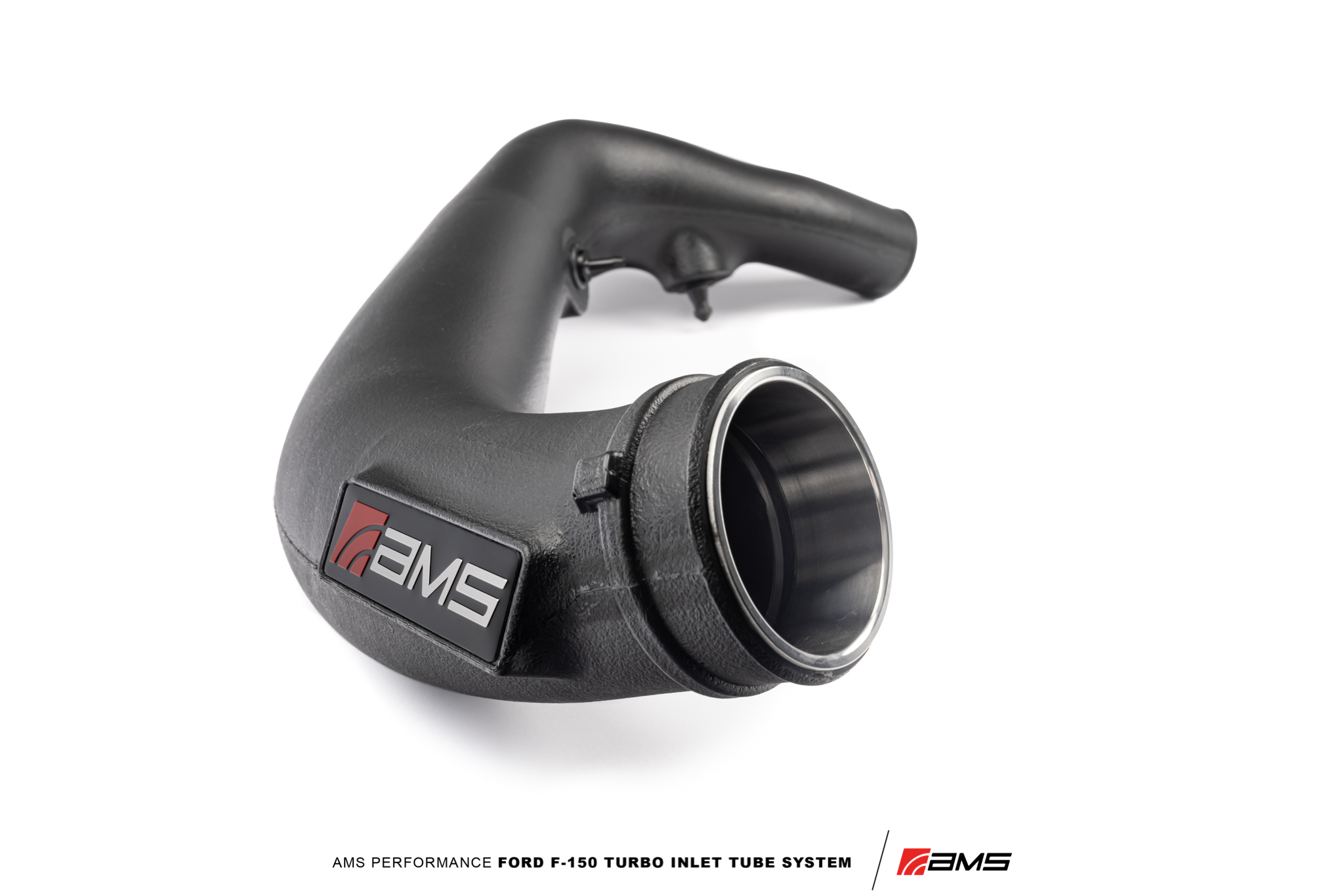

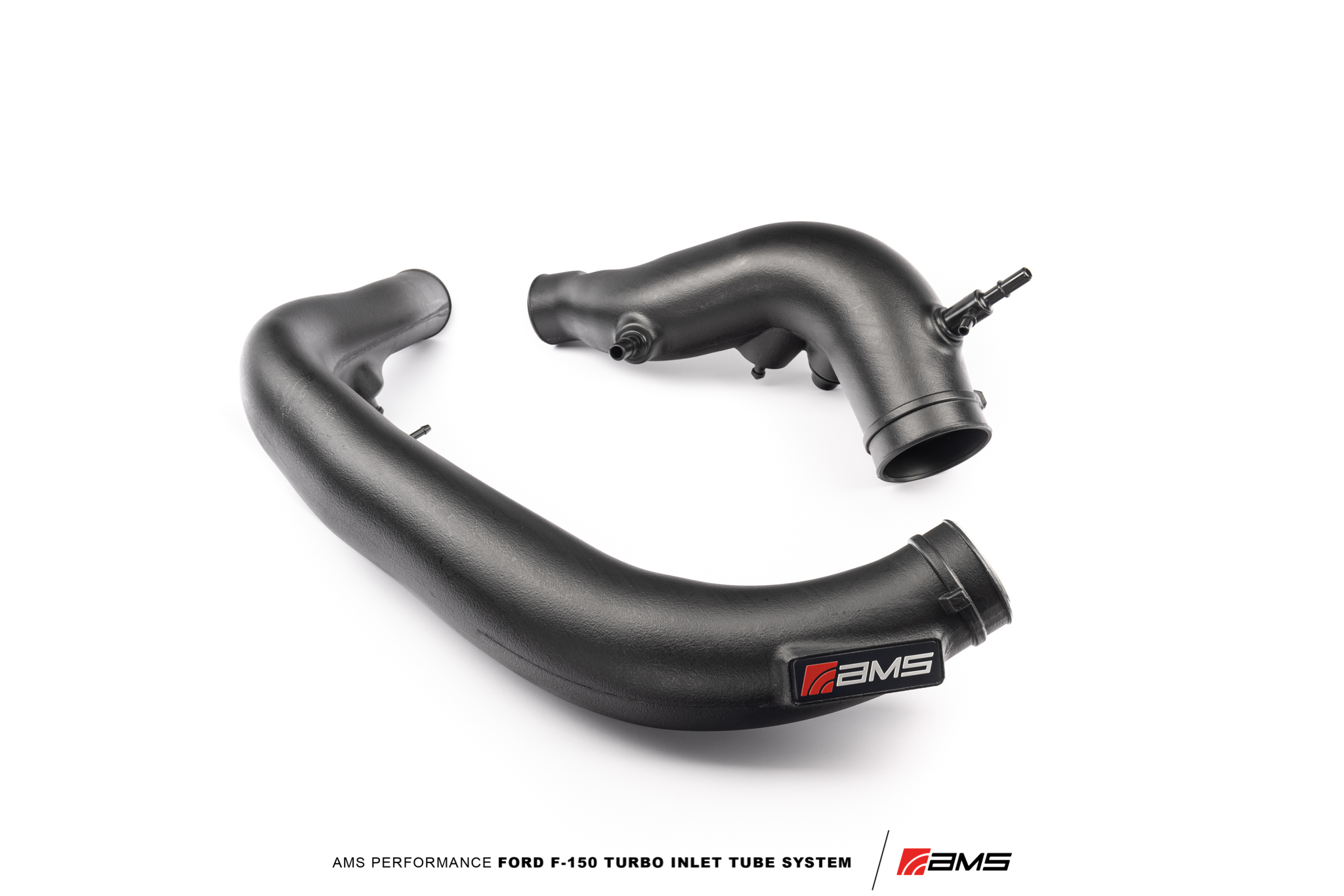

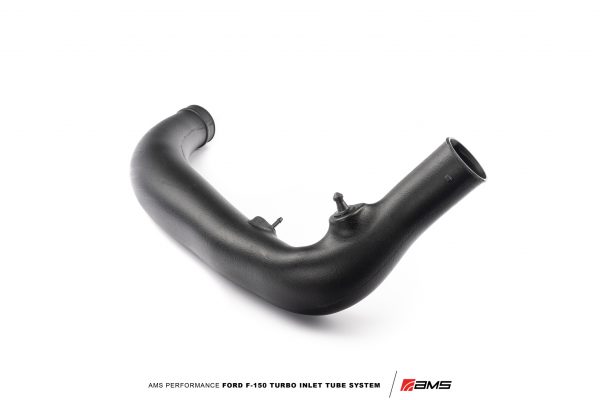

AMS Performance 2015-2016 Ford F-150 3.5L EcoBoost Turbo Inlet Tubes
Massive tube size increase provides reduced airflow restriction allowing maximum horsepower from the engine.
$399.95
In Stock
-
California Residents: Prop 65 Warning
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 30 × 19 × 11 in |
CARB And / Or EPA Compliance Testing Not Completed
While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.
With 23 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.
We took one look at the miniscule OEM inlet tubes on the 3.5L EcoBoost engine and knew we had a game changing product for 2015-2016 F150 3.5L owners. Our team has designed the AMS Performance 2015-2016 Ford F-150 3.5L EcoBoost Turbo Inlet Tubes to have a huge increase in the cross sectional area at the power robbing bottleneck between the intake filters and turbo compressor covers to allow the turbos to breathe easier giving them the opportunity to create more horsepower with accompanying ECU calibration. Our engineers accomplished all of this while still retaining all of the OEM fittings which means all factory systems remain functional.
-
140% Increase in Cross Sectional Area Over the Bottlenecked OEM Tubes
-
Organically shaped to provide smooth flow during direction changes
-
Compatible with OEM and Most Aftermarket Intakes
-
Game Changing! – The ONLY Component of its Kind for Your 2015-2016 F150 3.5L
-
Less Pressure Drop at Turbo Compressor Covers vs the Stock Tubes
-
Retains All OEM Fittings and Connections
-
OEM Look and Feel with High Quality Materials
-
All Necessary Hardware Included
Engineered to Win
Our AMS SnailWorks© Engineering Team has massively increased the stock pipe size from 40mm tube to 62mm, and even engineered a quick and easy way to orientate the couplers to make clocking the tubes during installation a breeze. We know there are a lot of airbox options on the market so our team took extra measures to make sure our AMS Turbo Inlet Tubes work with both OEM or your aftermarket intakes. The AMS Turbo Inlet Tubes feature an understated appearance that results in an OEM look and feel in your trucks engine bay. Our engineers accomplished all of this while still retaining an OEM-level of fit and finish, as well as incorporating all OEM fittings for an easy installation, and no pesky check engine lights down the road.
Data Driven Design
One of the most important metrics for determining a restriction in airflow in an automotive intake system is to measure pressure, in this case, pre-turbo. This measurement should be as close to 0 PSI as possible, which indicates no restriction in airflow to the turbos. The more vacuum within the intake pipe, the more restrictive the intake system. The AMS F150 3.5L EcoBoost Turbo Inlet Tubes show an approximate 30% reduction in vacuum pre-turbo, showing their improvement in airflow and ability to allow for more horsepower from the engine.
AMS Performance 2015-2016 Ford F-150 3.5L EcoBoost Turbo Inlet Tubes Includes
- AMS Performance Inlet Tubes — Featuring all OEM Line Hookups
- AMS Performance Silicone Couplers
- AMS Performance Ancillary Components — Including all Clamps and Hardware
Product Notes
- Works with the OEM and most aftermarket intake boxes
