AMS Performance Inline Fuel Pulsation Damper
An inline solution for reducing fuel line hammering and NVH.
$99.95 – $129.95
-
California Residents: Prop 65 Warning
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 2 in |

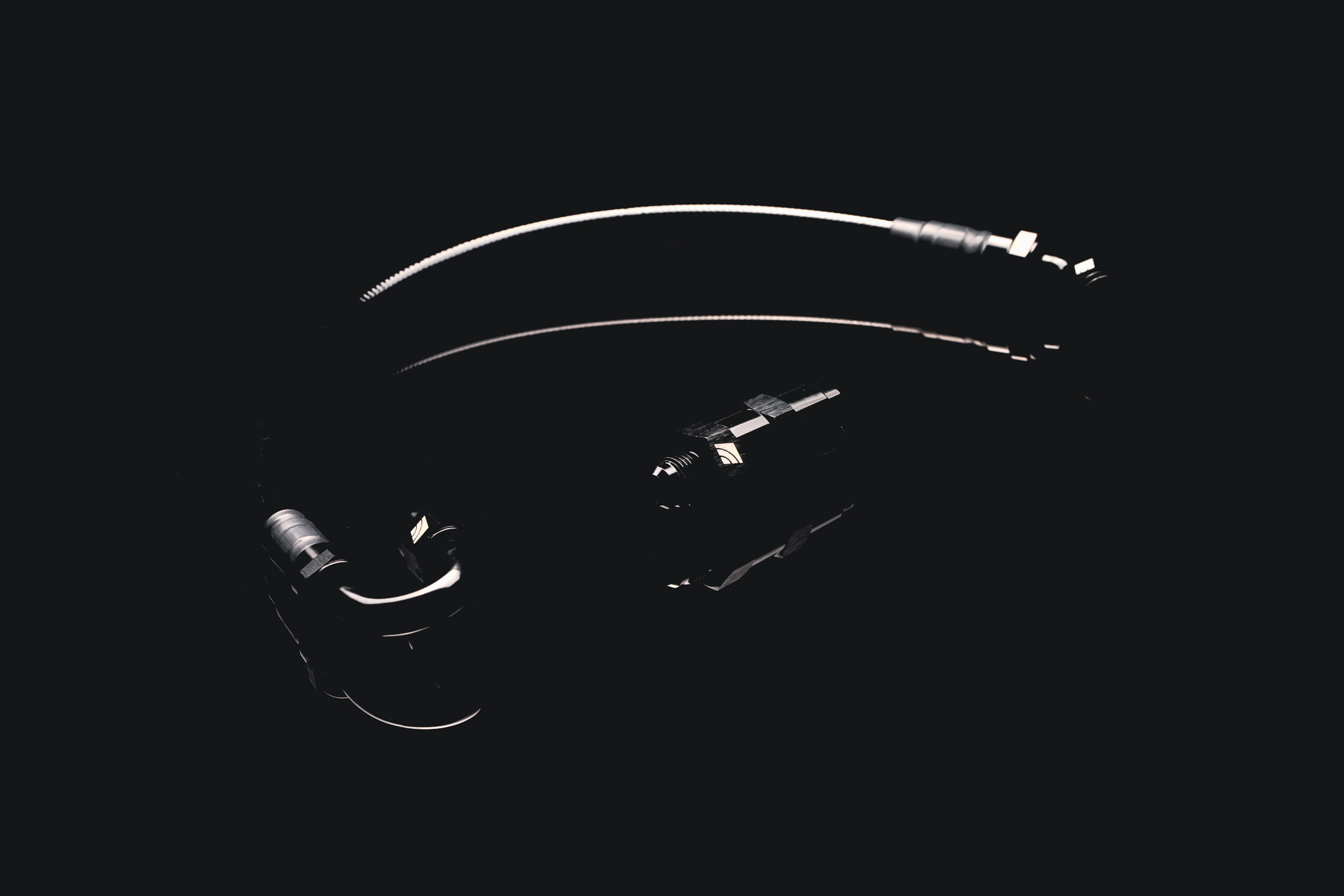

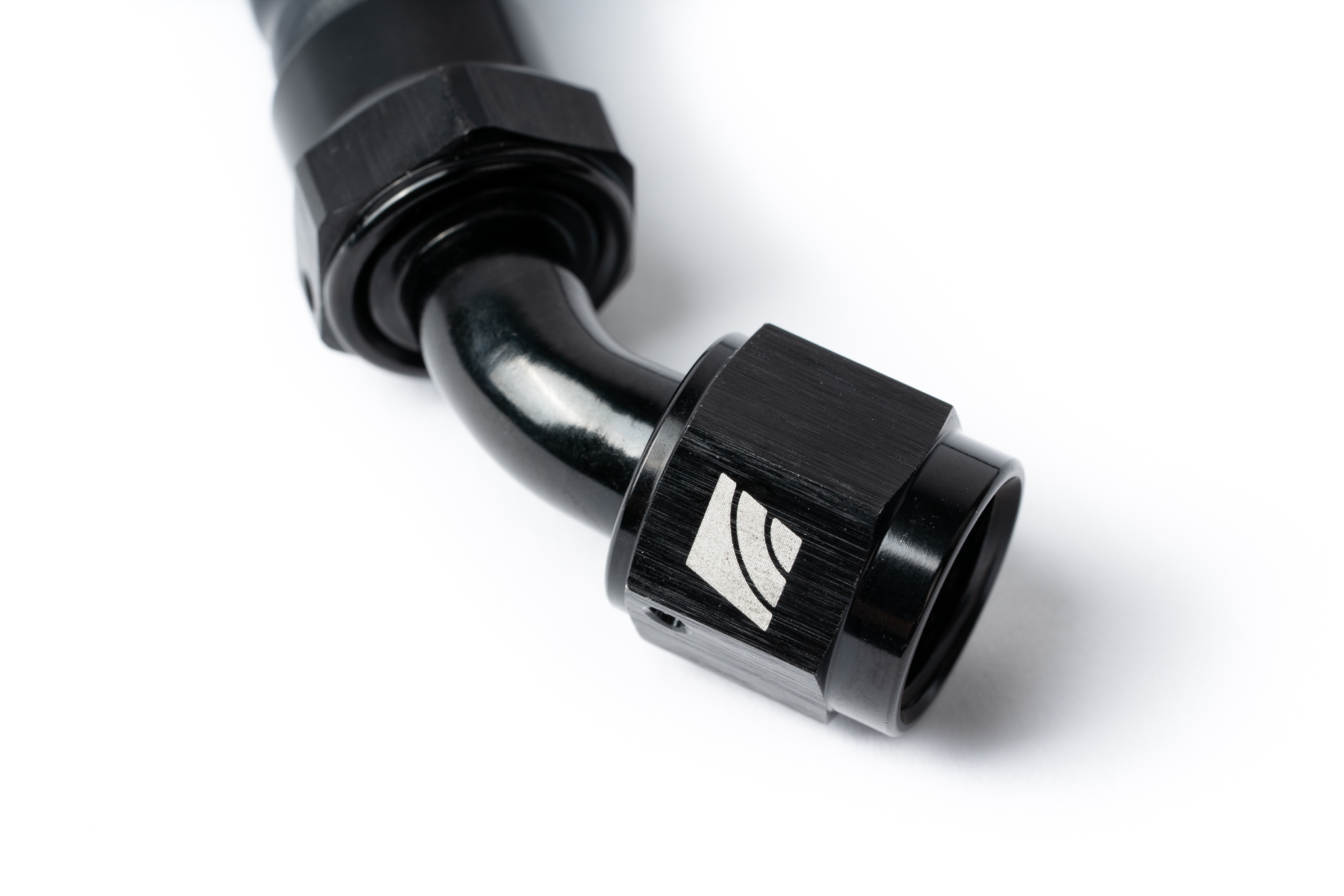

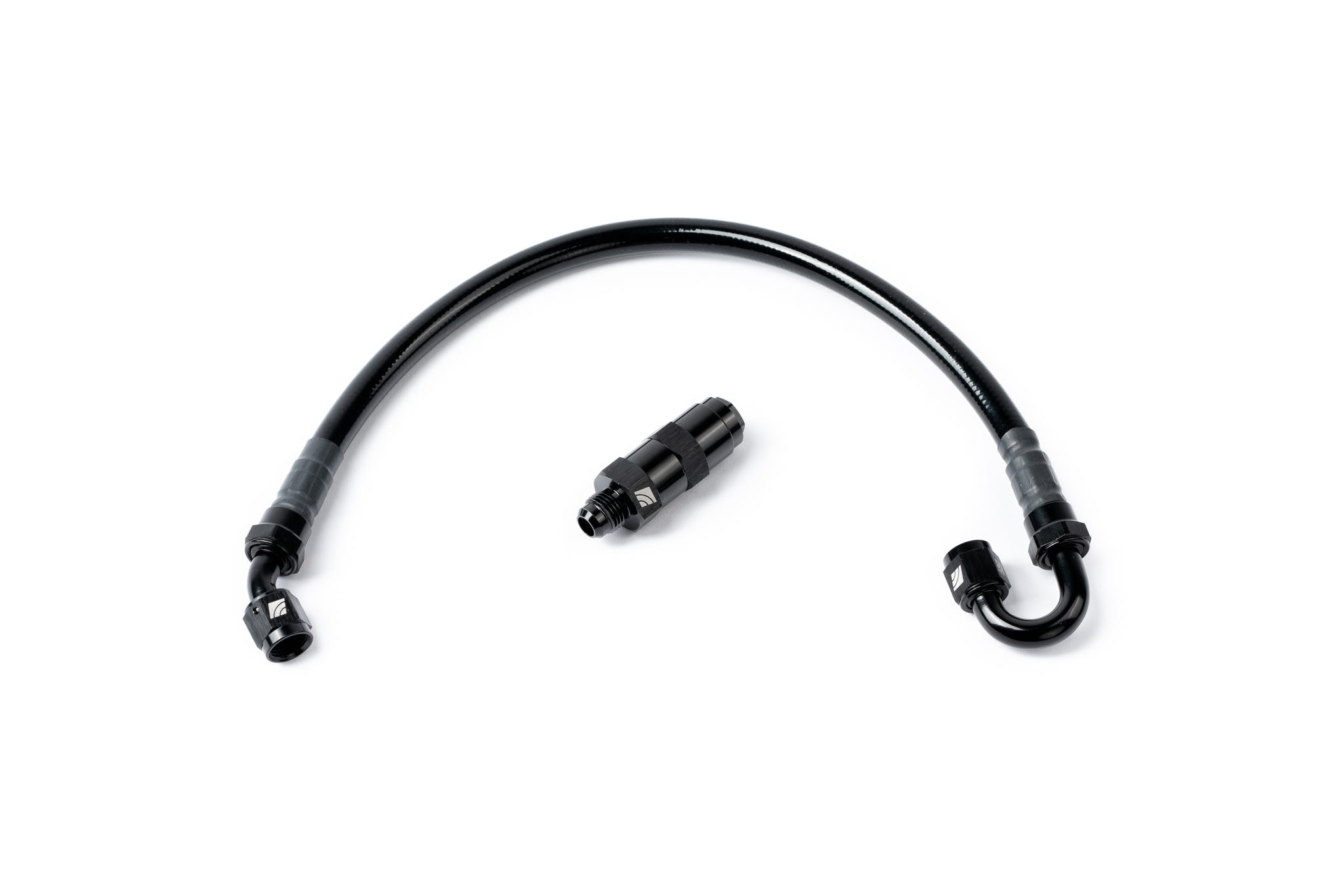

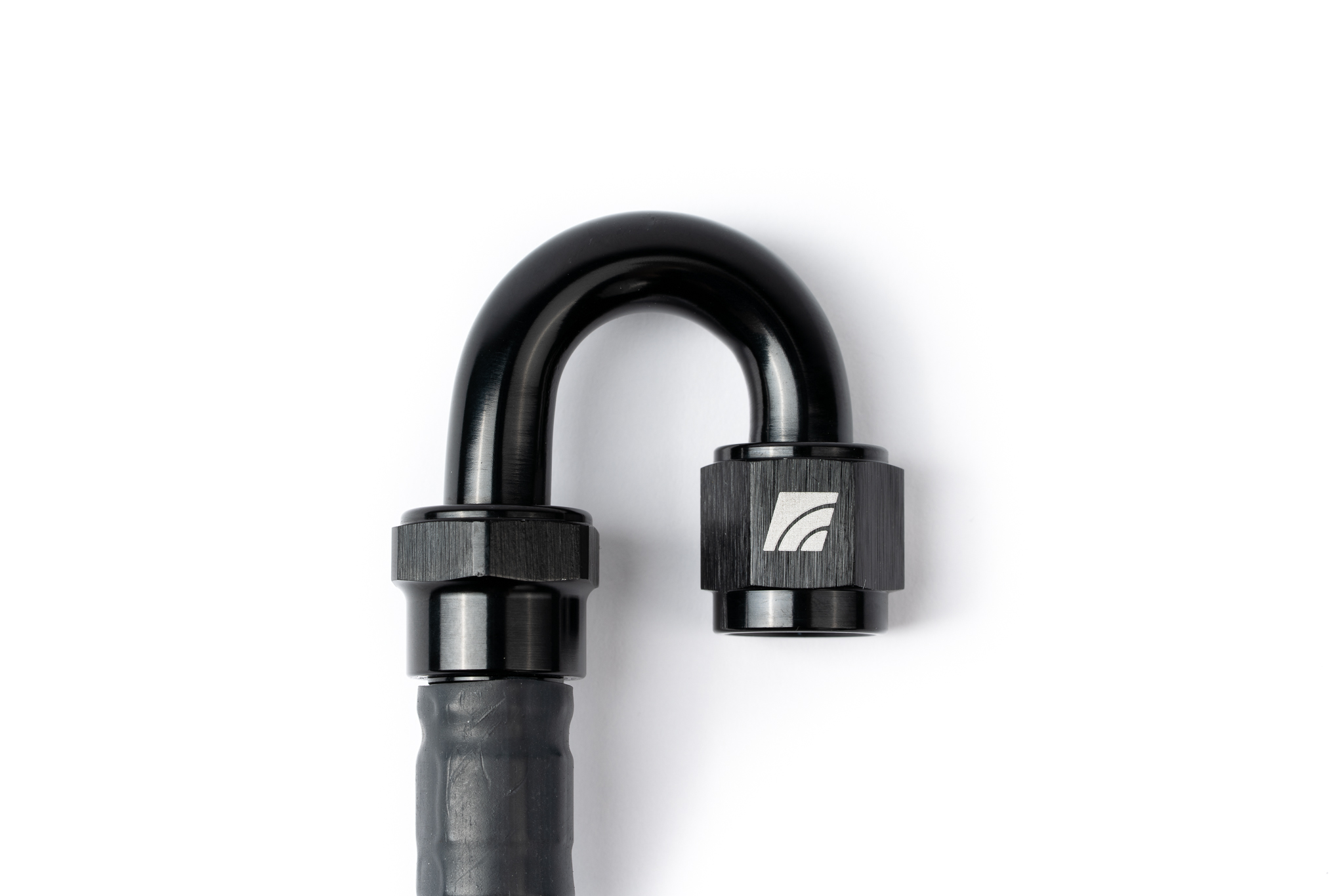

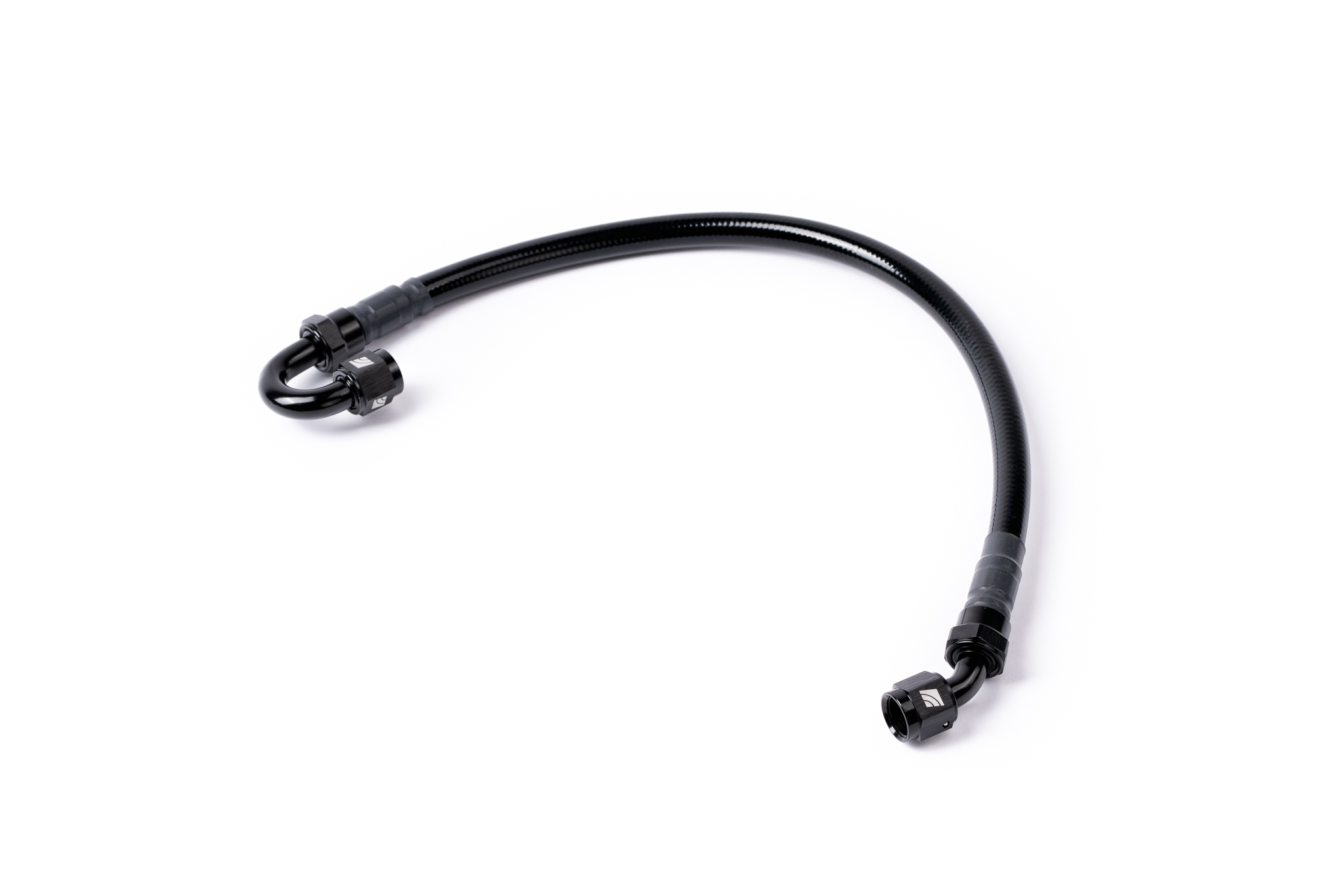

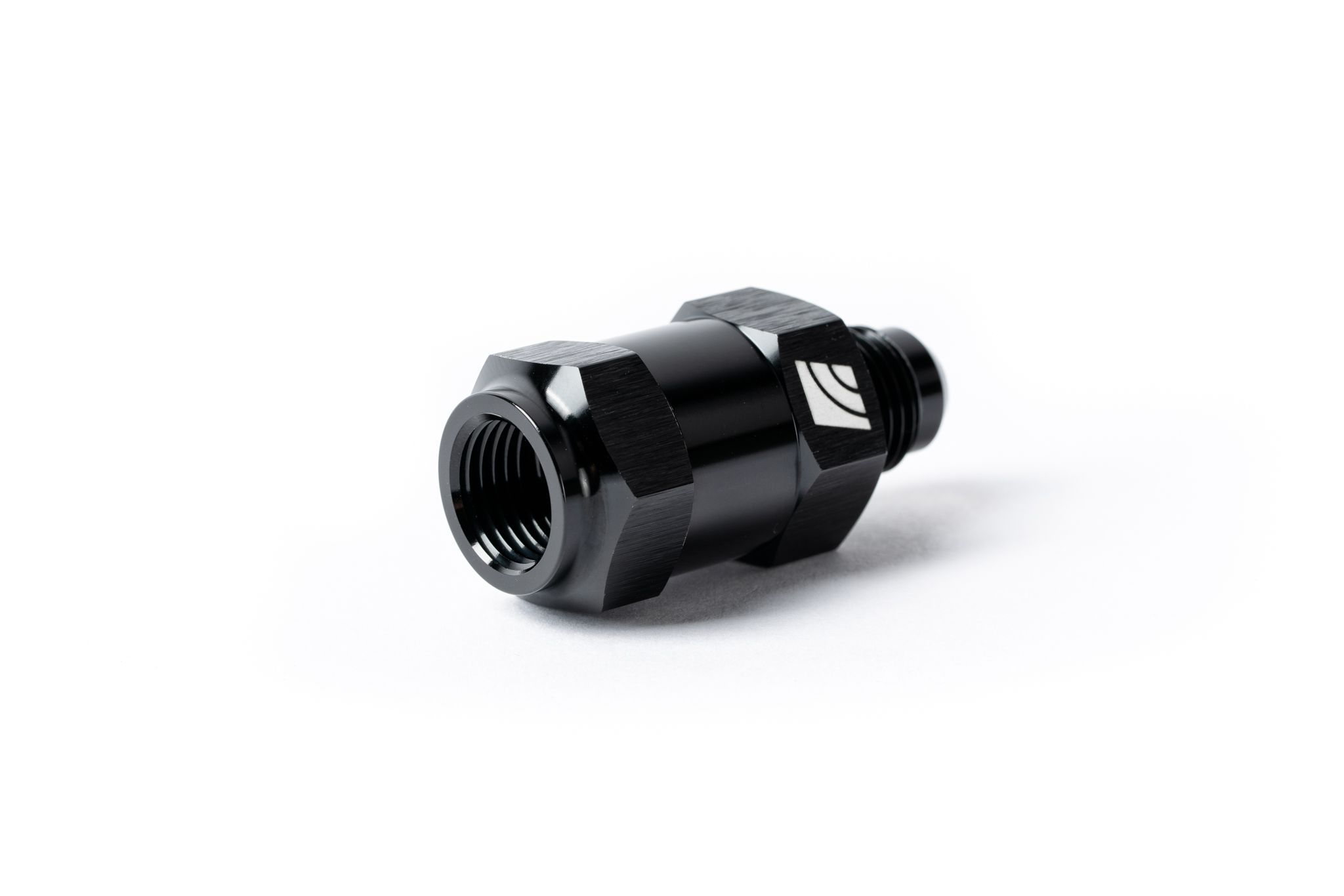

| Select Fuel Pulsation Damper Type (See Below for Fitment Guide) | -06 AN Female Inlet to -06 AN Male Outlet [AMS.00.07.0002-2], 5/16 Quick Connect Inlet to -06 AN Male Outlet [AMS.00.07.0002-3], 5/16 Quick Connect Inlet to -06 AN Male Outlet (Including -06AN Fuel Line) [AMS.47.07.0009-2] |
CARB And / Or EPA Compliance Testing Not Completed
While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.
With 24 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.

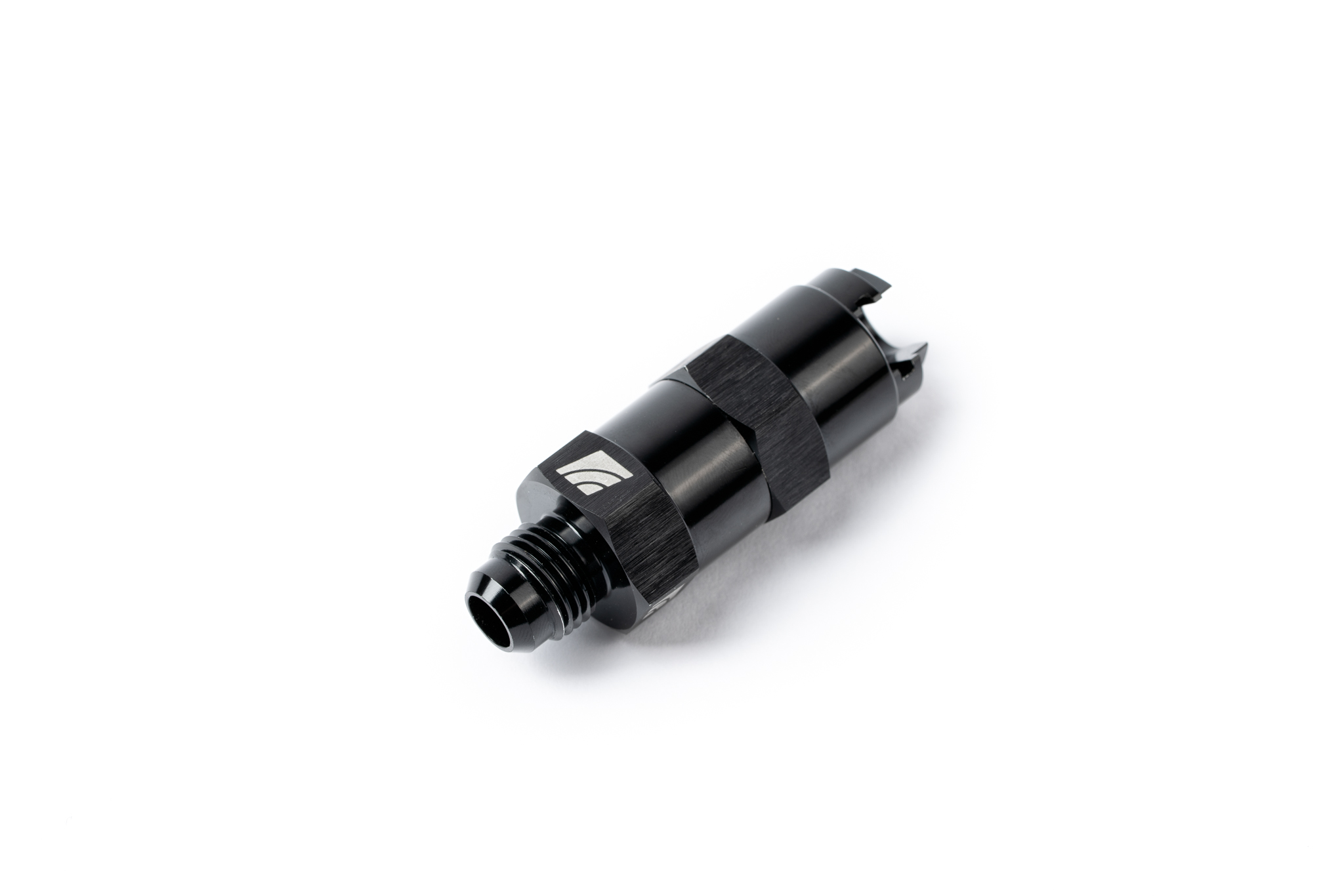

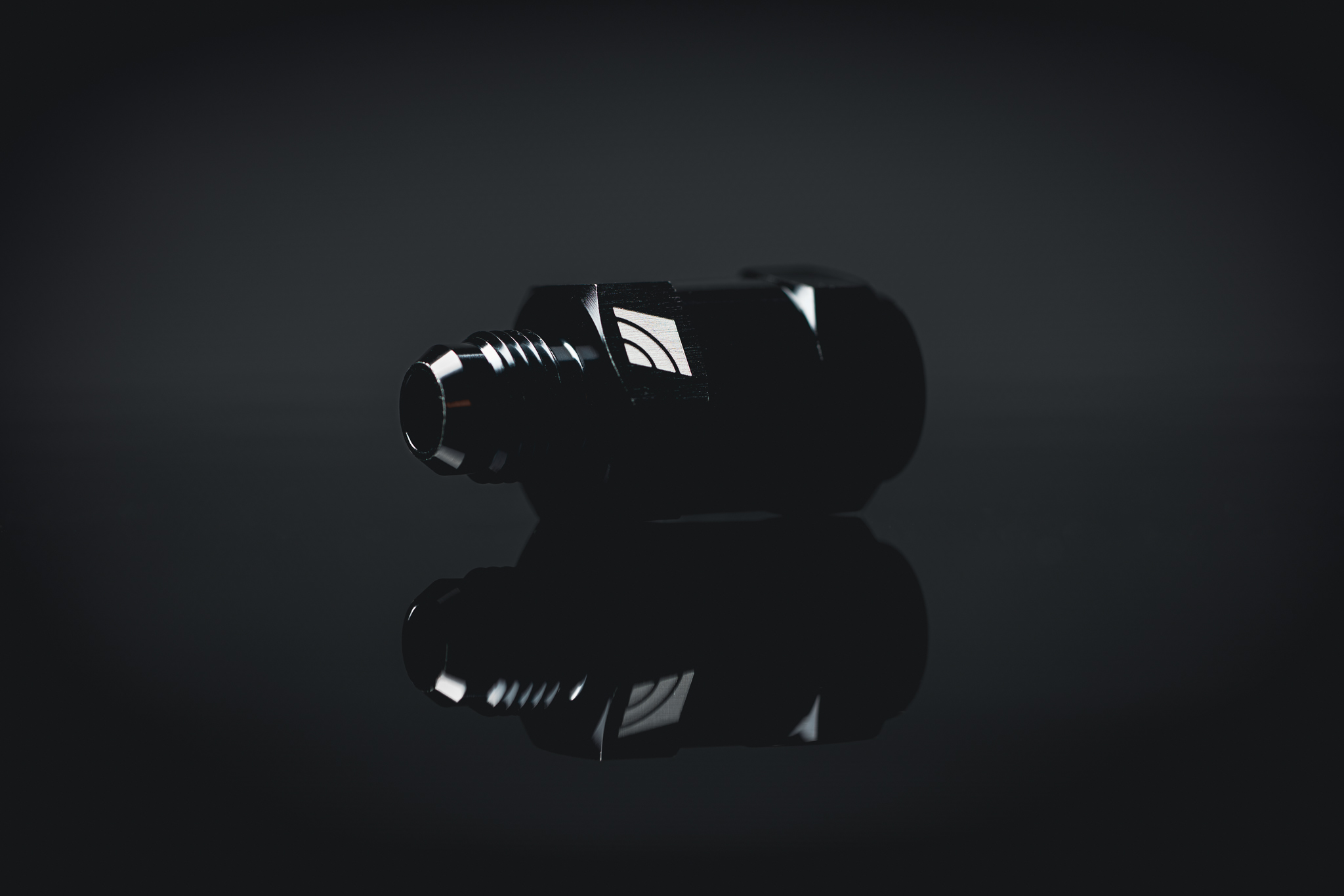

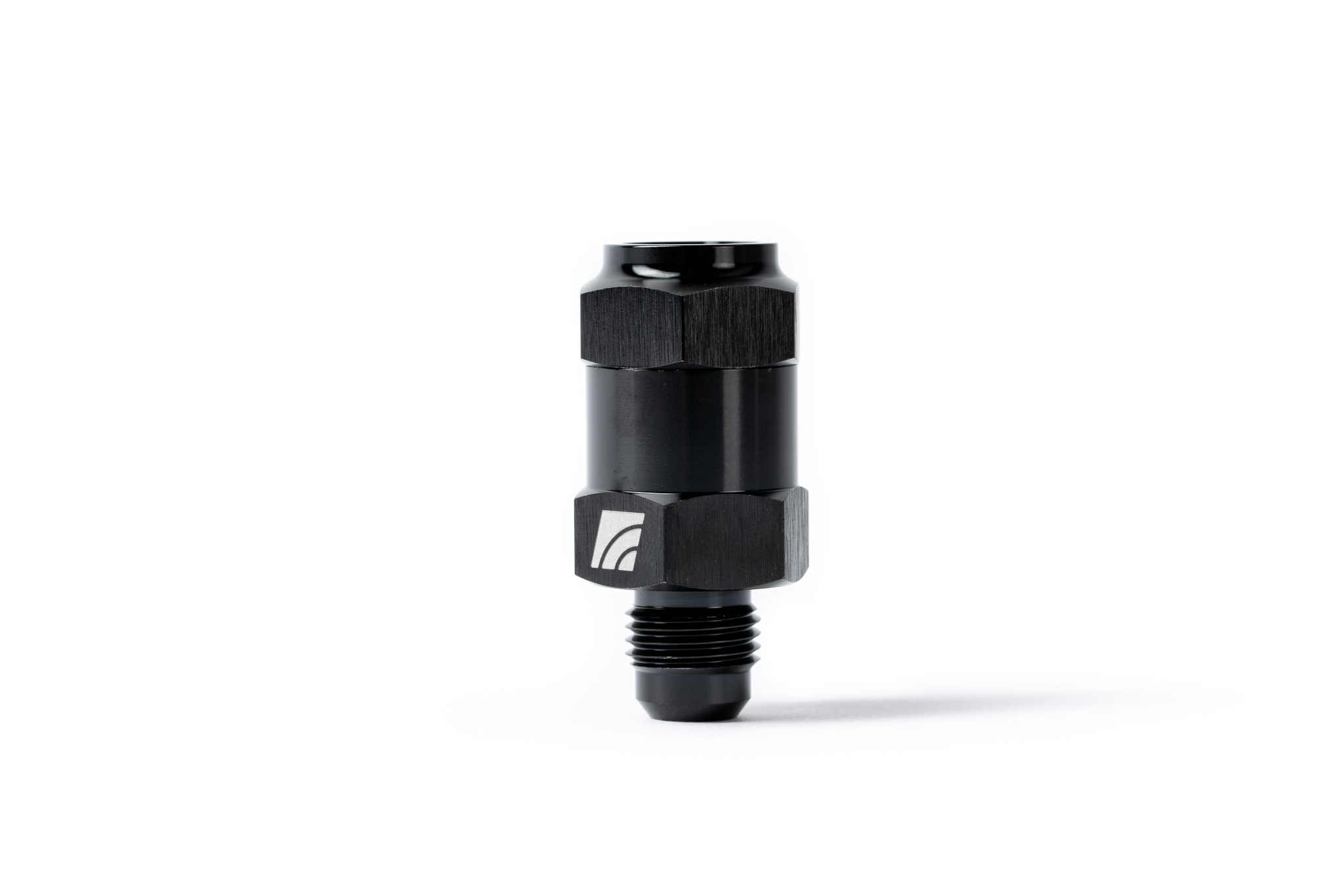

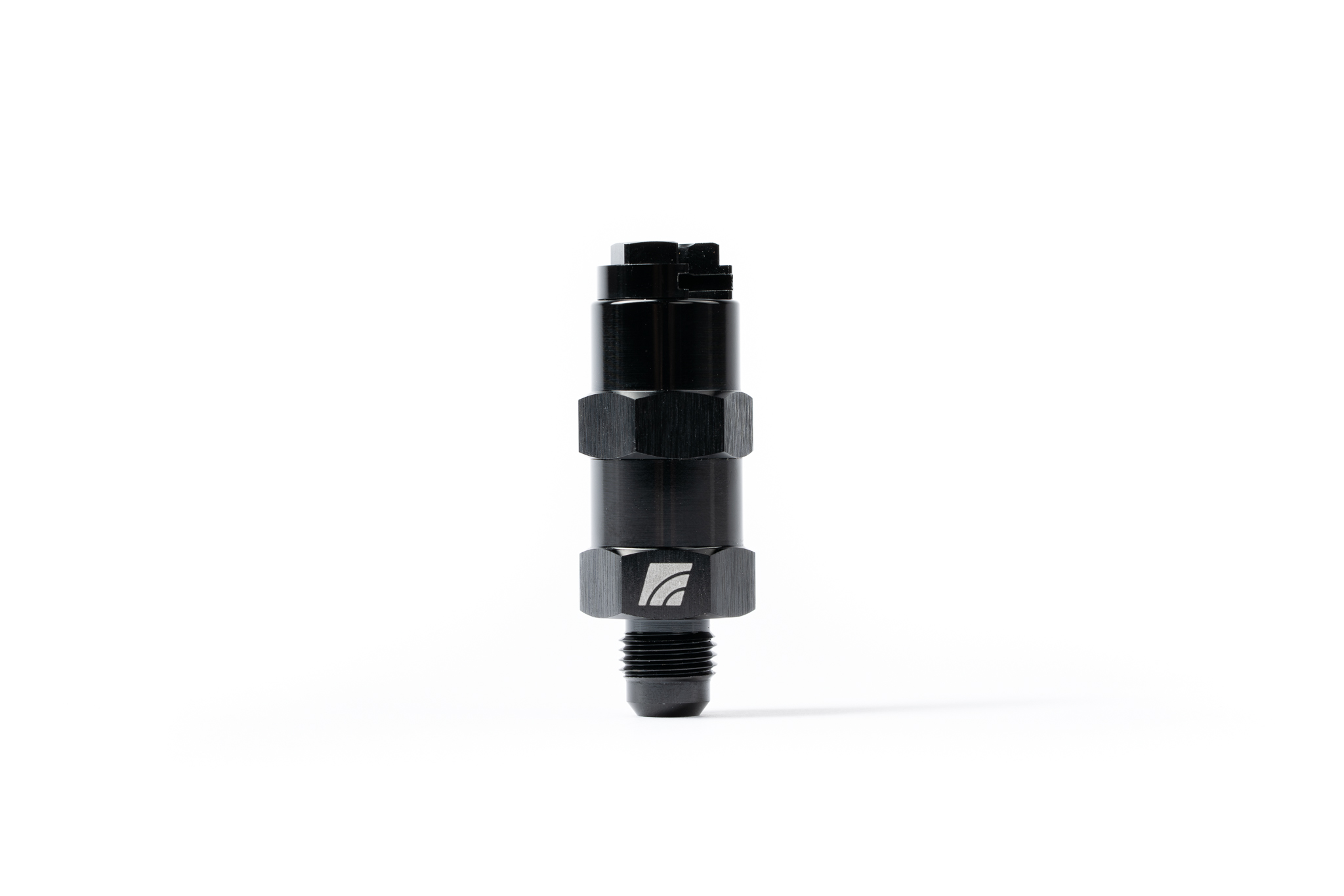

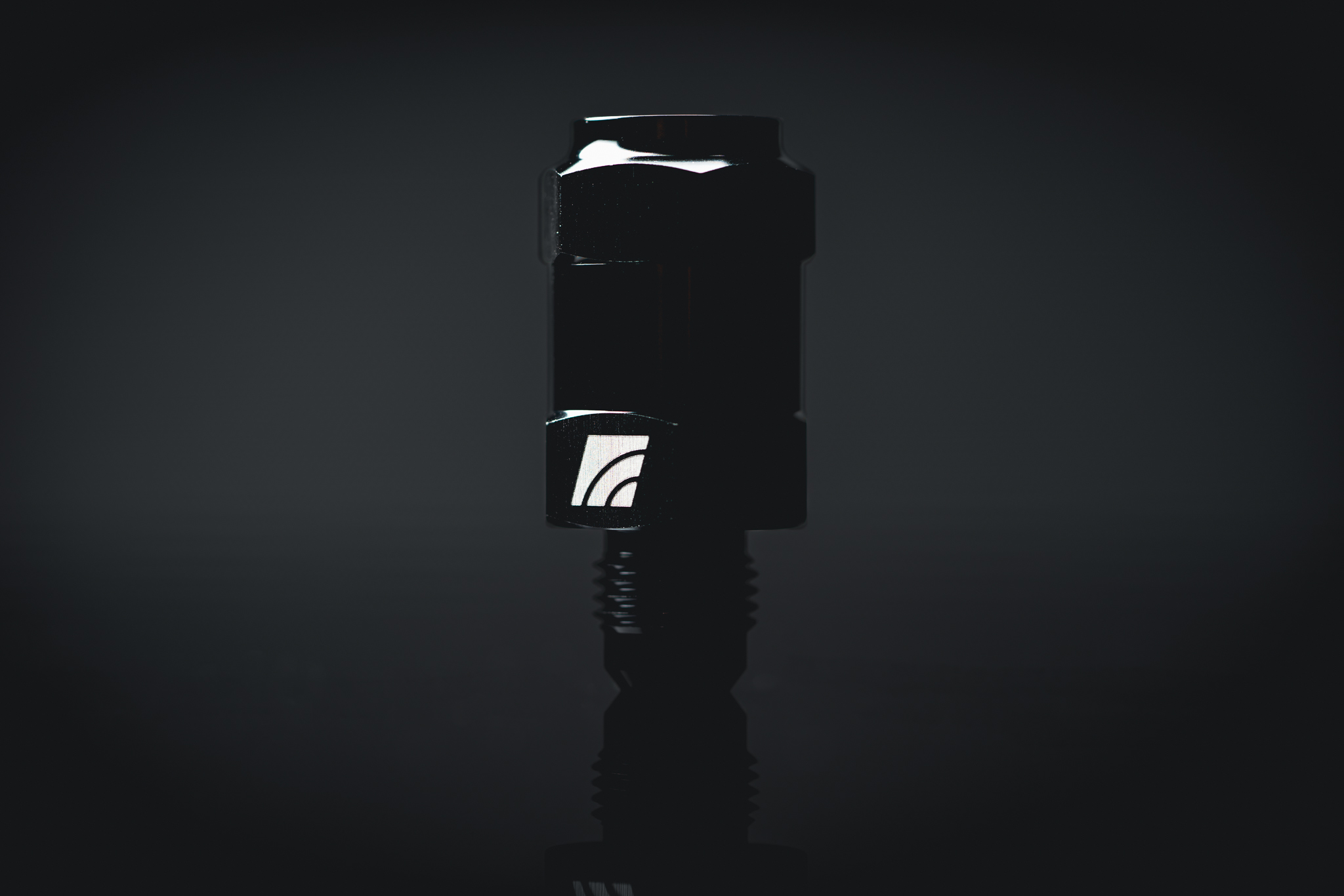

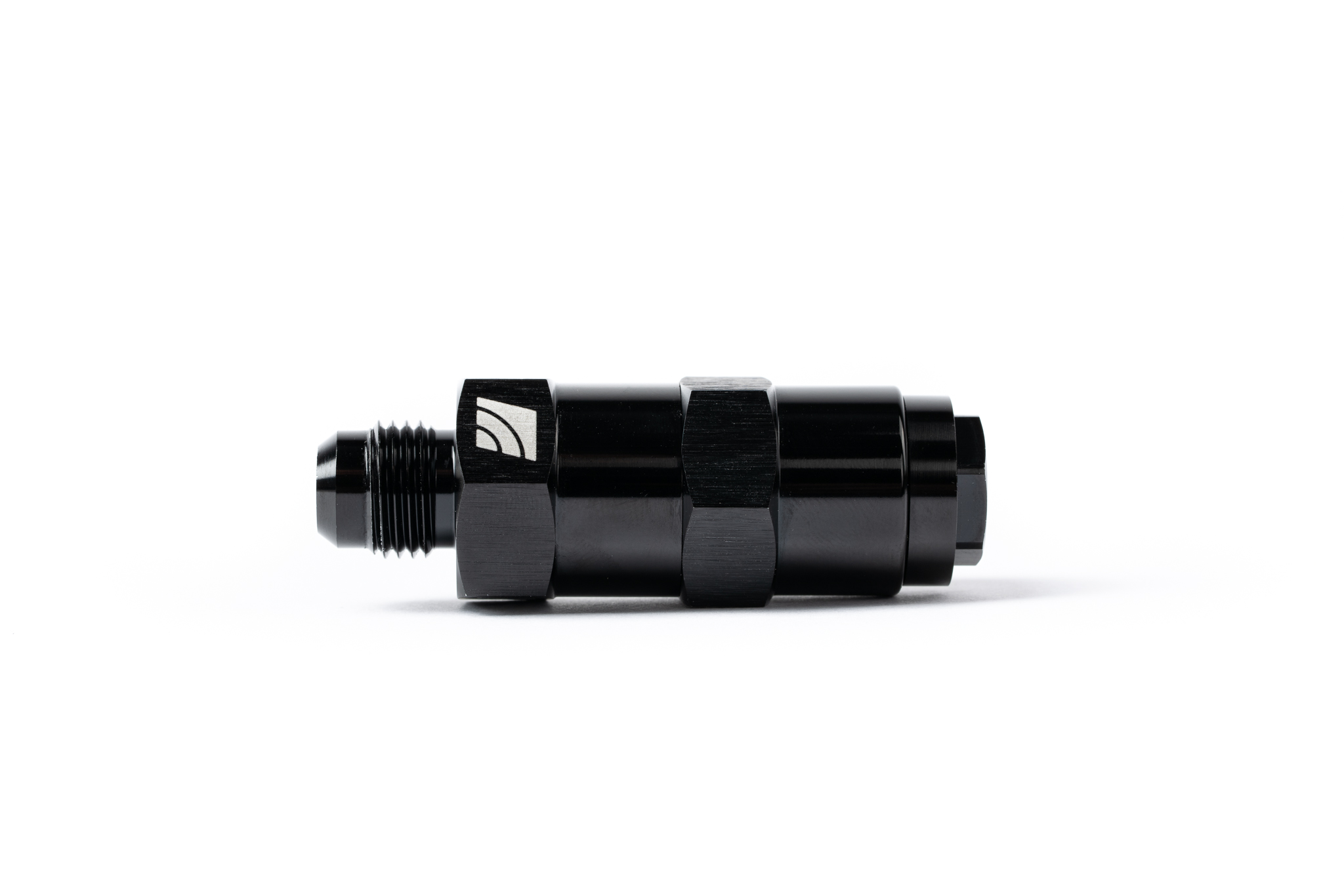

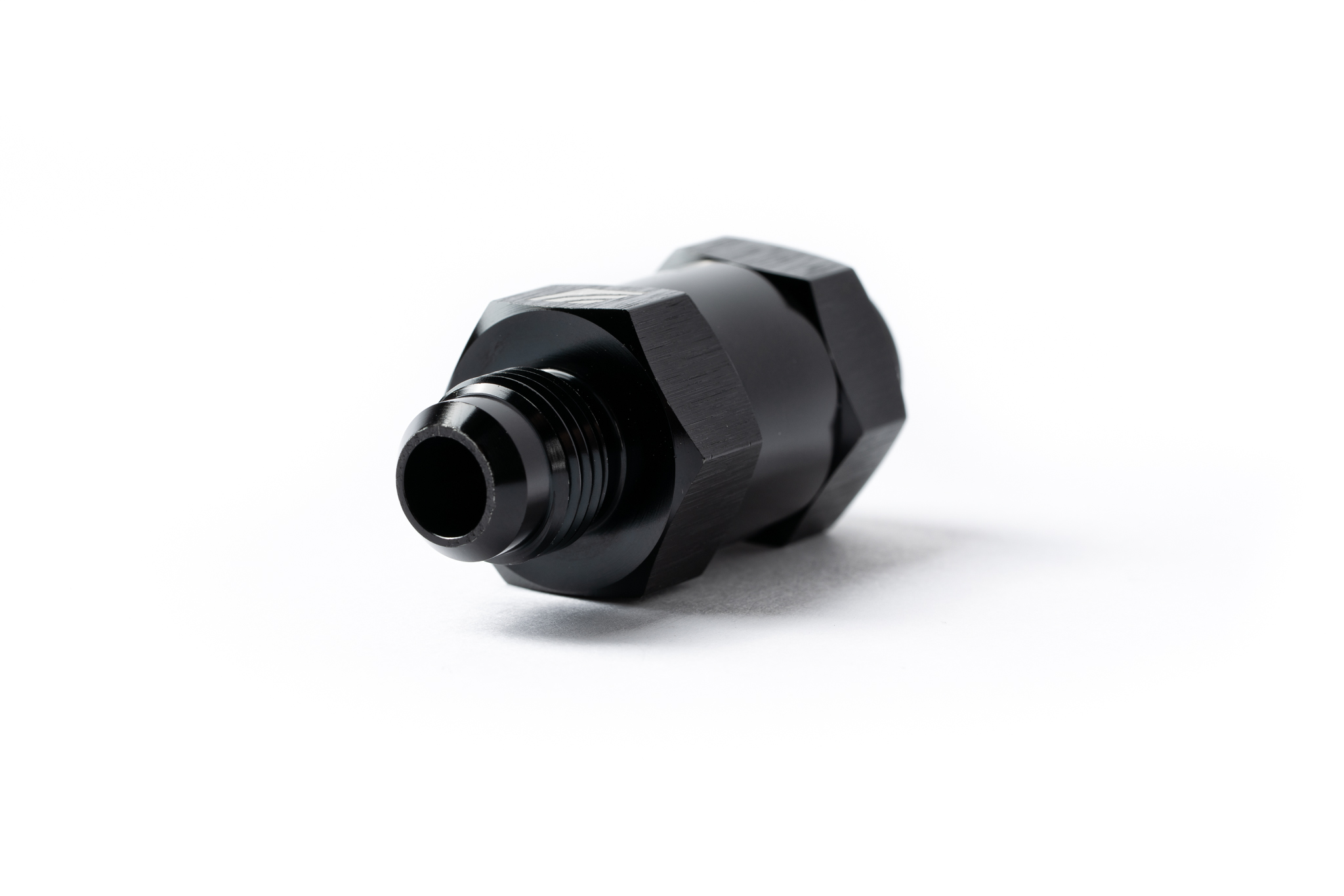

The AMS Performance Inline Fuel Pulsation Damper is the solution to unwanted fuel system noise, vibration, and harshness (NVH) caused by fuel line hammering in high-performance applications. Engineered to minimize or eliminate pressure spikes in the fuel system, this damper features a high-flow stainless steel internal valve specifically designed to work with high-pressure fuel pumps. It utilizes a durable billet 6061 aluminum body with a fully anodized gloss black finish for long-lasting performance and a clean look. Available with an inline -6AN male inlet and -6AN ORB outlet, or a 5/16 Quick Connect Inlet and -6AN ORB outlet, it’s easy to integrate into existing setups and is a direct bolt-in solution for AMS VR30DDTT fuel system-equipped vehicles. The AMS Inline Fuel Pulsation Damper offers a reliable, long-term solution for stabilizing fuel delivery and eliminating fuel line NVH at idle, under load, or across various RPM ranges.
-
Minimizes or Eliminates Fuel Hammering and Fuel System NVH
-

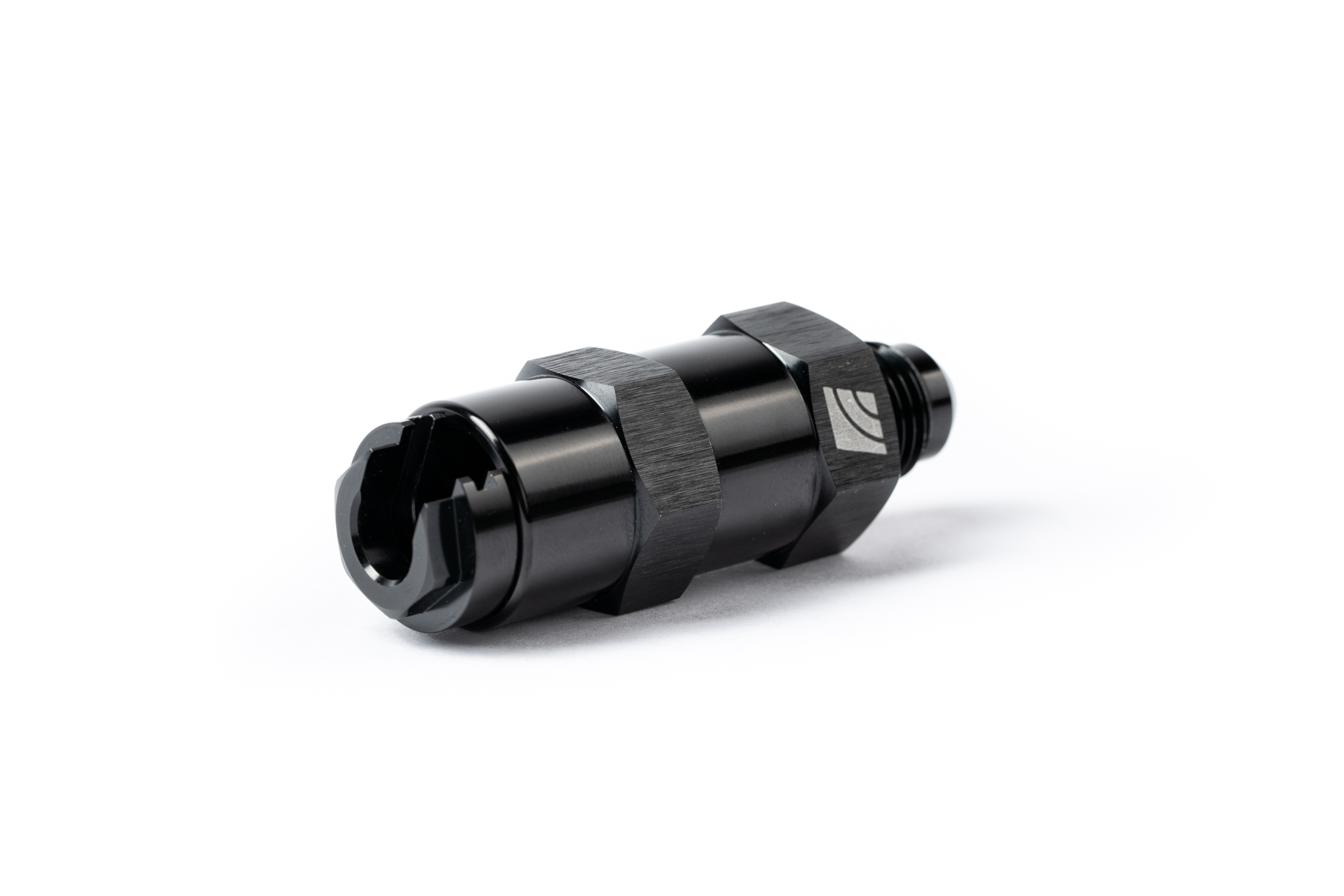

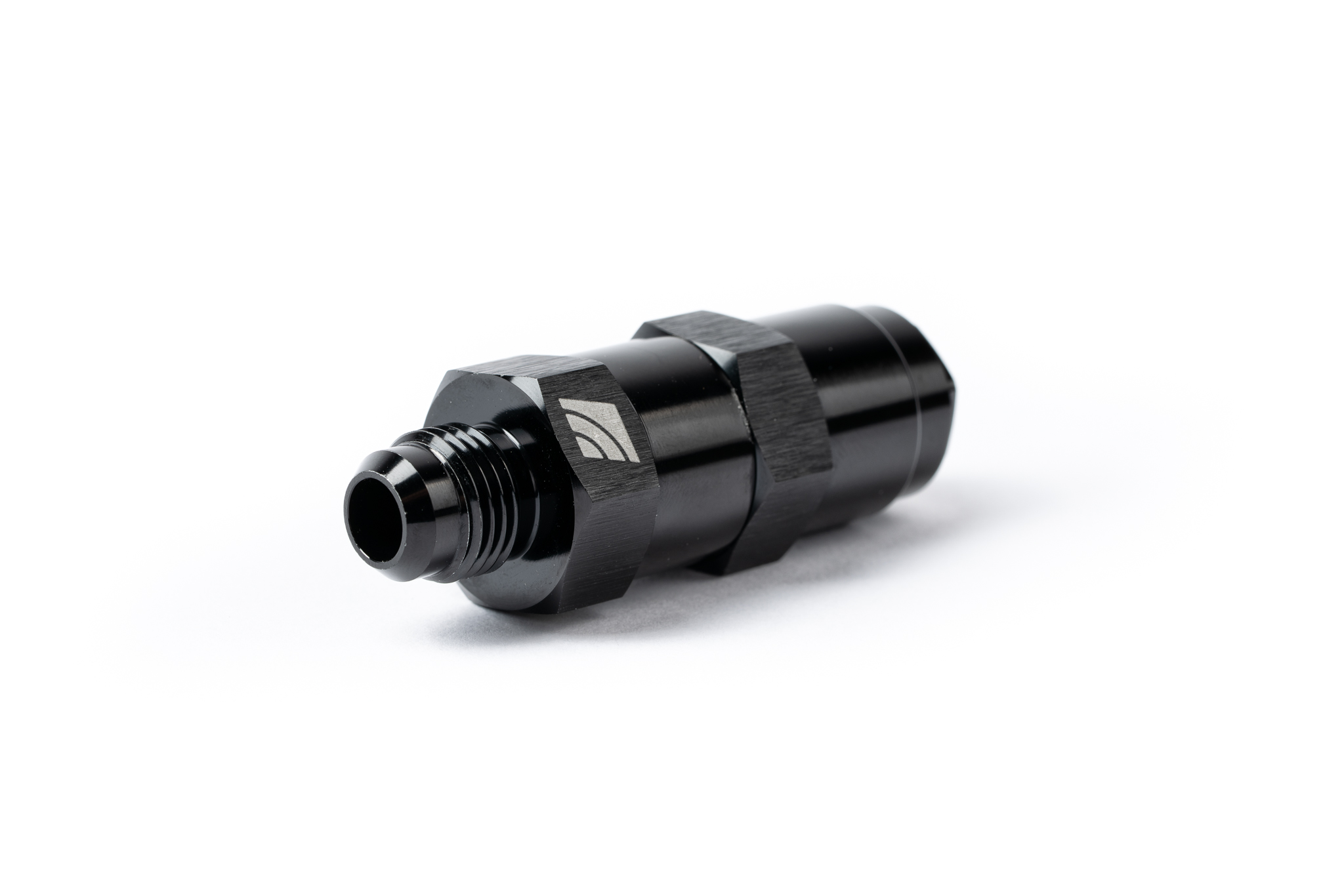

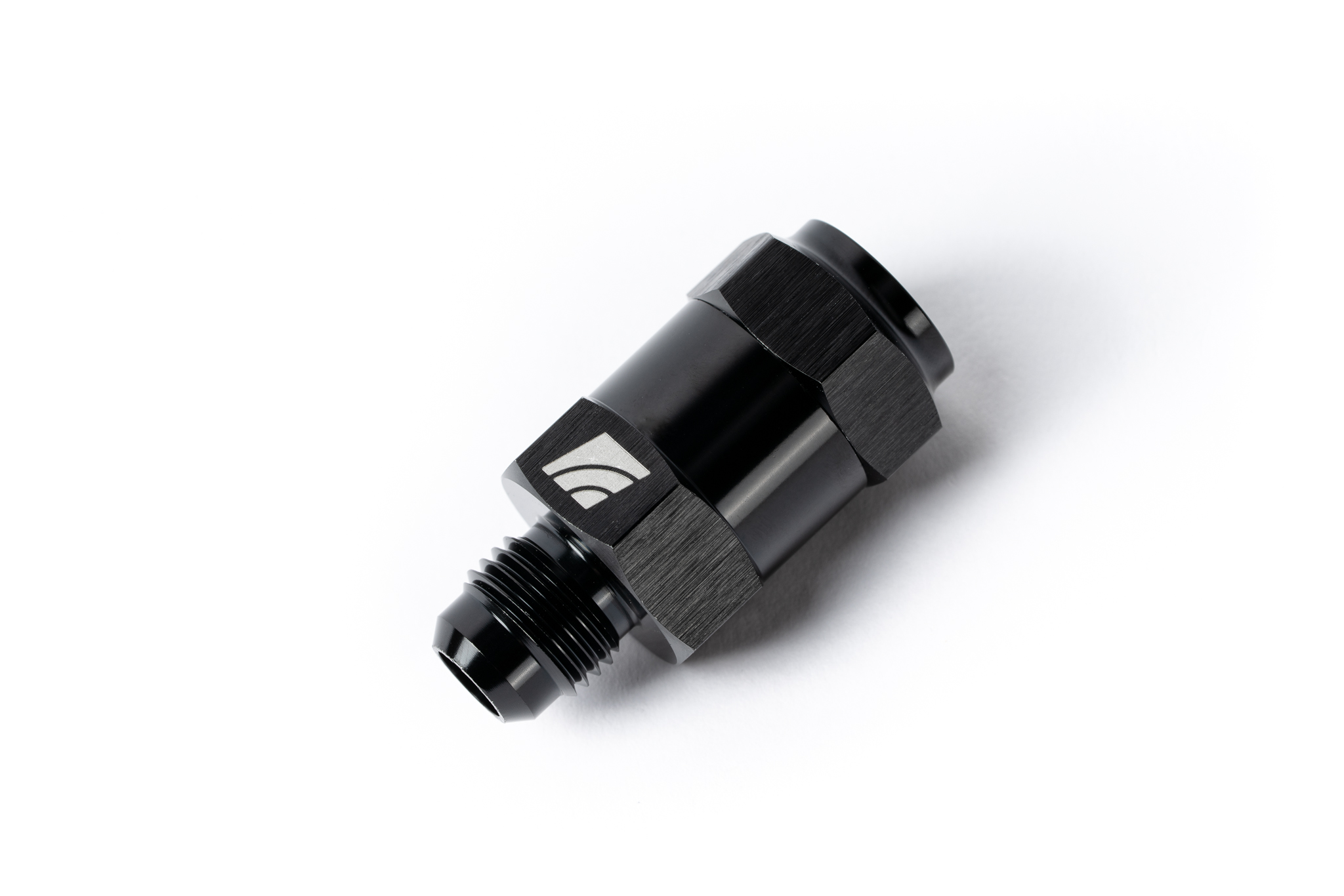

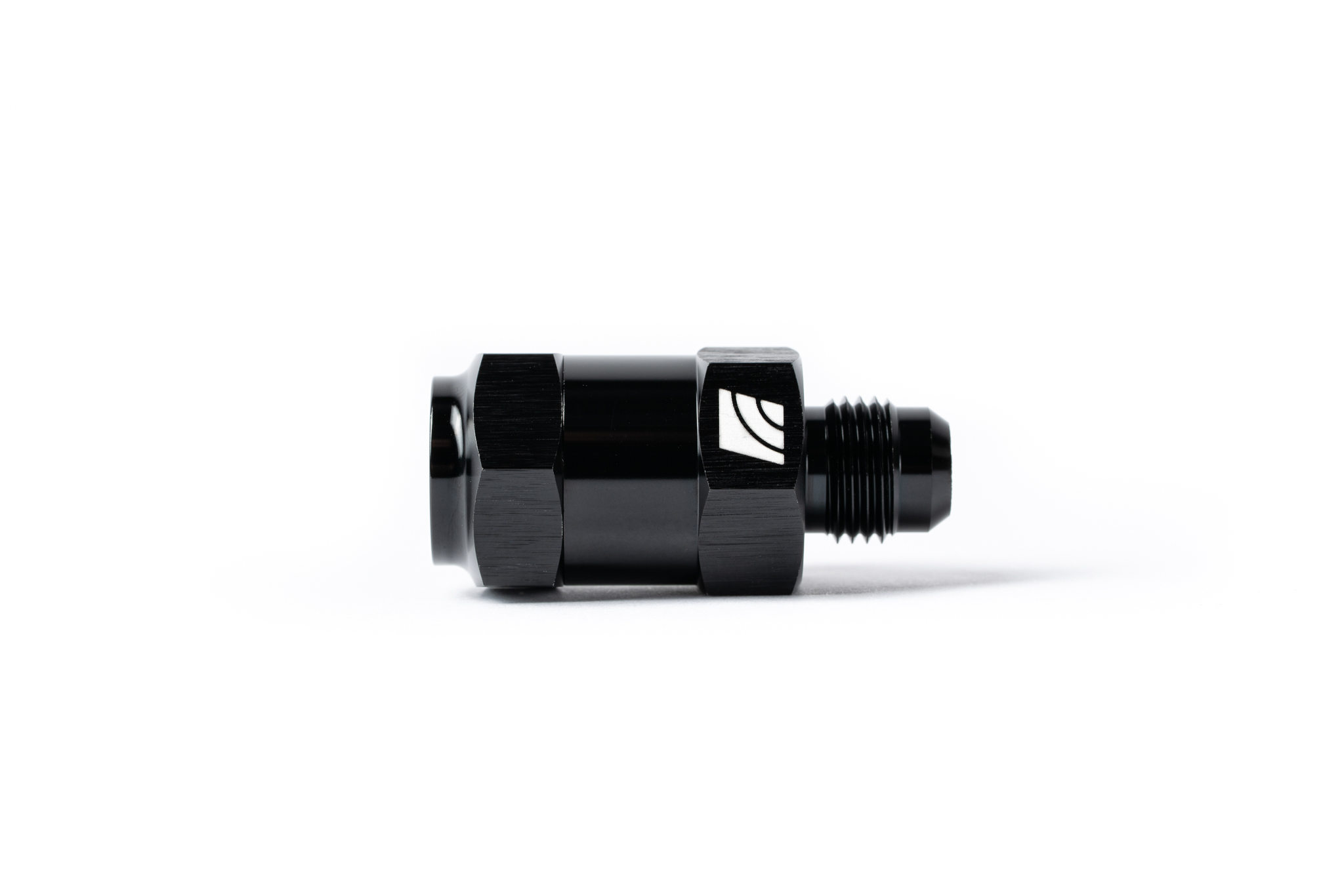

Inline -6an Male or 5/16 Quick Connect Inlet with a -6an ORB Outlet
-
High Flow Stainless Steel Internal Damper Valve Spec’d for High Pressure Fuel Pumps
-
Billet 6061 Body with Fully Anodized Gloss Black Housing
-

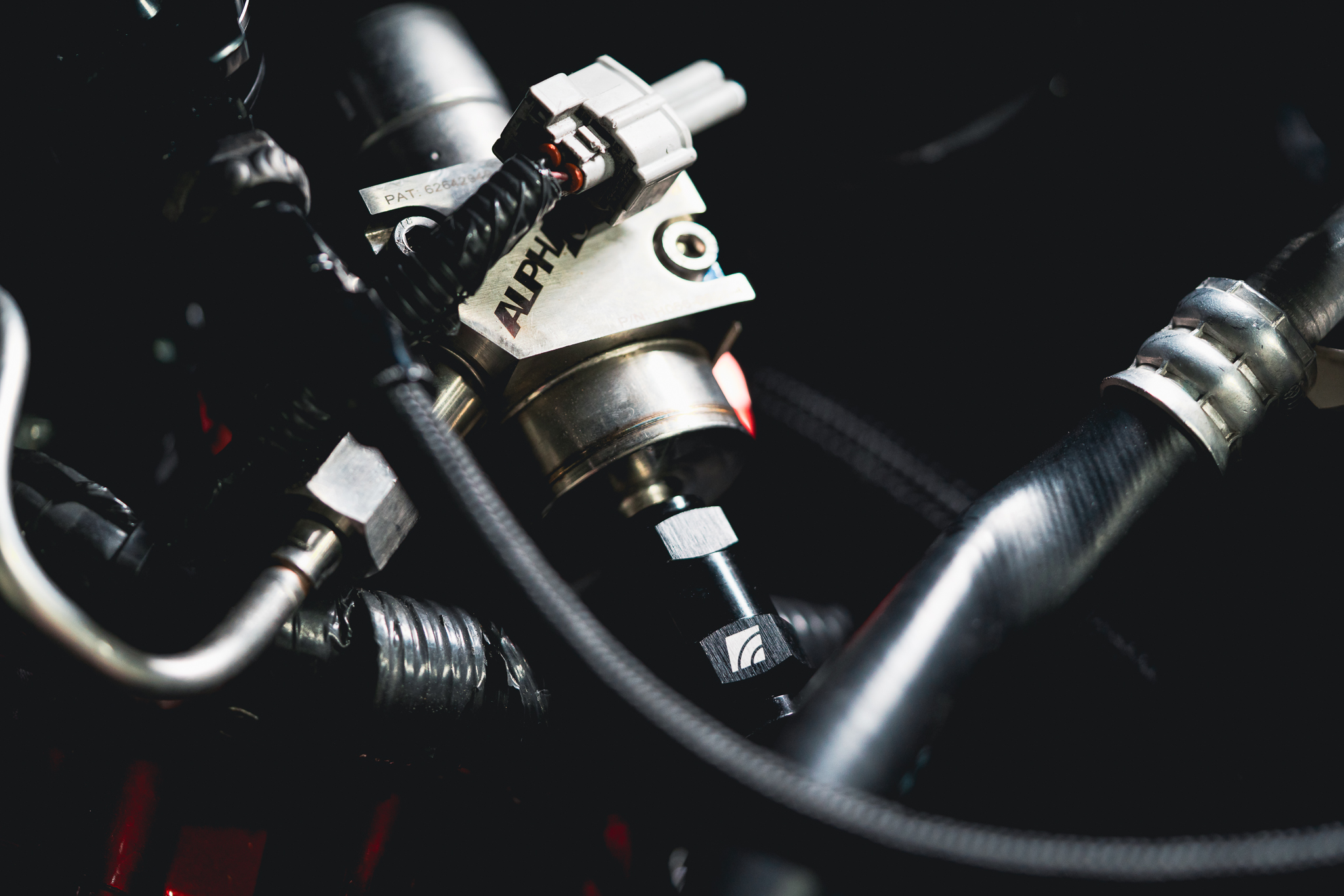

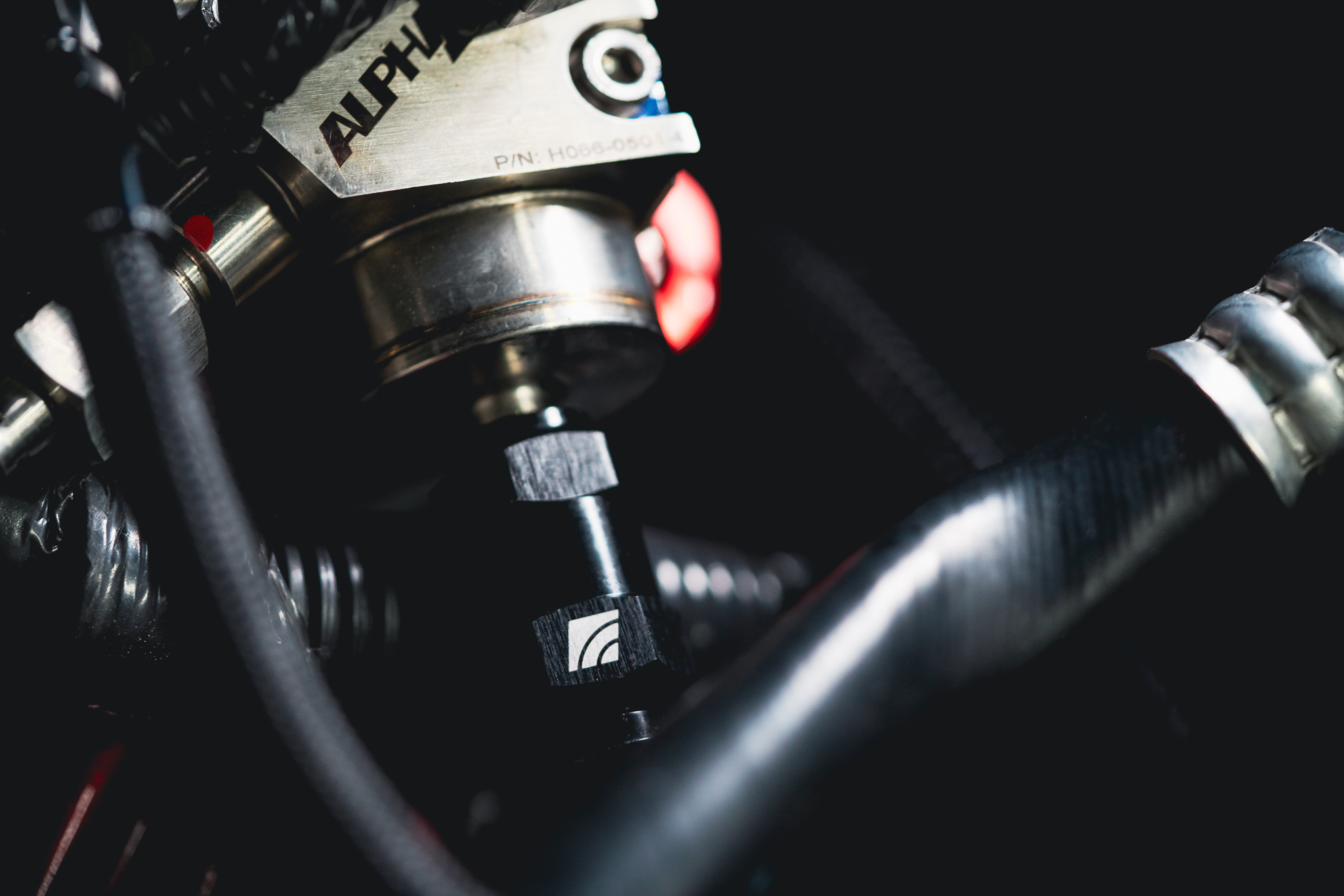

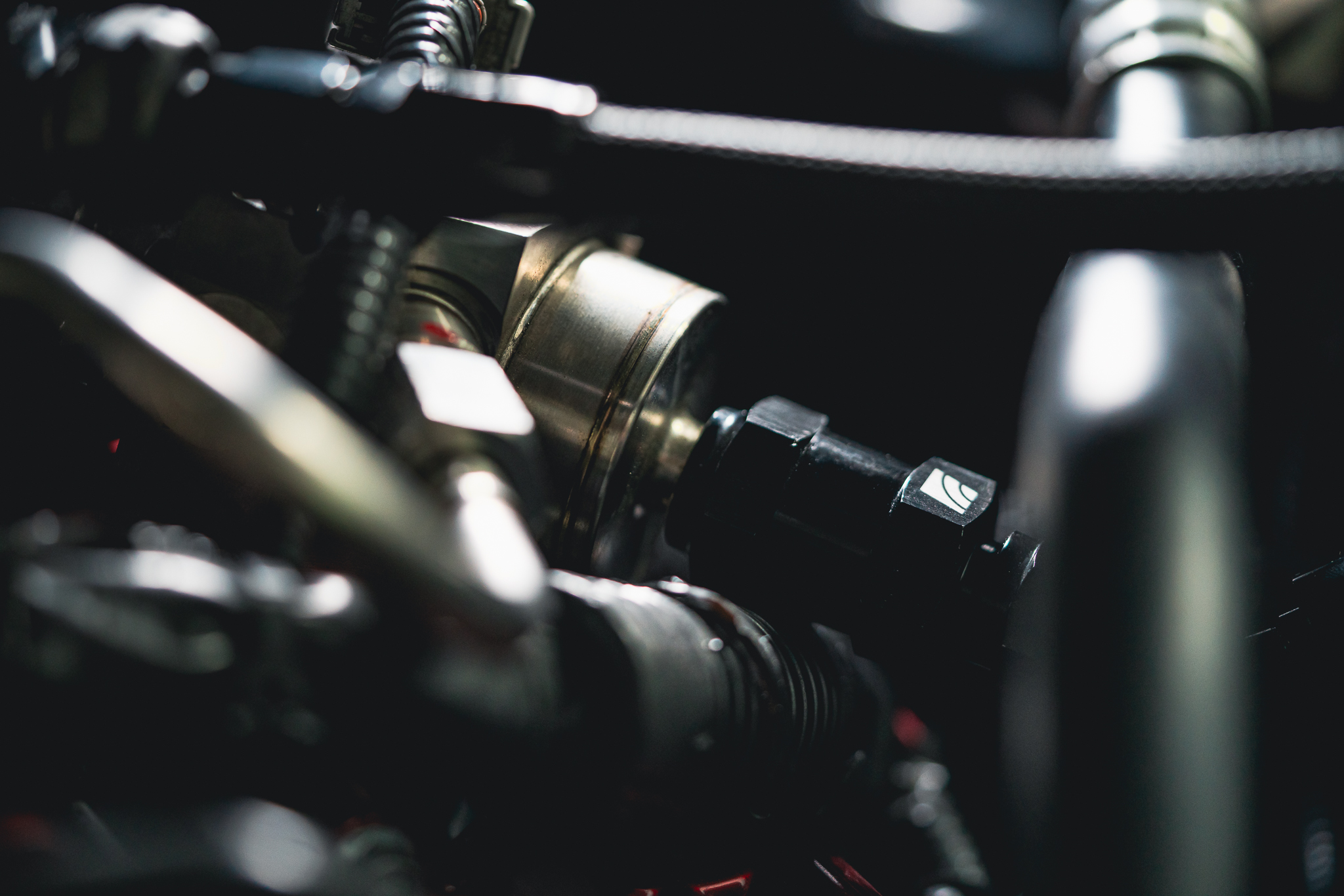

Easy Bolt-in Install for AMS VR30DDTT Fuel System Vehicles (See fitment guide below)
What Is Fuel Line Hammering?
Fuel line hammering, also known as fuel pulsation NVH, or fuel line knock, is a rhythmic ticking or knocking noise caused by pressure spikes within the fuel system. These spikes are often the result of the rapid opening and closing of fuel injectors or the operation of a high-pressure fuel pump, both of which can generate shock waves that resonate through the fuel lines. This issue can occur at idle or become more pronounced at certain RPMs, depending on engine load and fuel system components and plumbing. It’s particularly common in high-performance modified setups where fuel flow dynamics are more aggressive. Symptoms may include audible noise, fluctuating fuel pressure readings, and potentially increased stress on fuel system components. The AMS Performance Inline Fuel Pulsation Damper is specifically engineered to absorb these pressure pulses, reducing noise, stabilizing fuel pressure, and promoting smoother, more consistent engine performance.

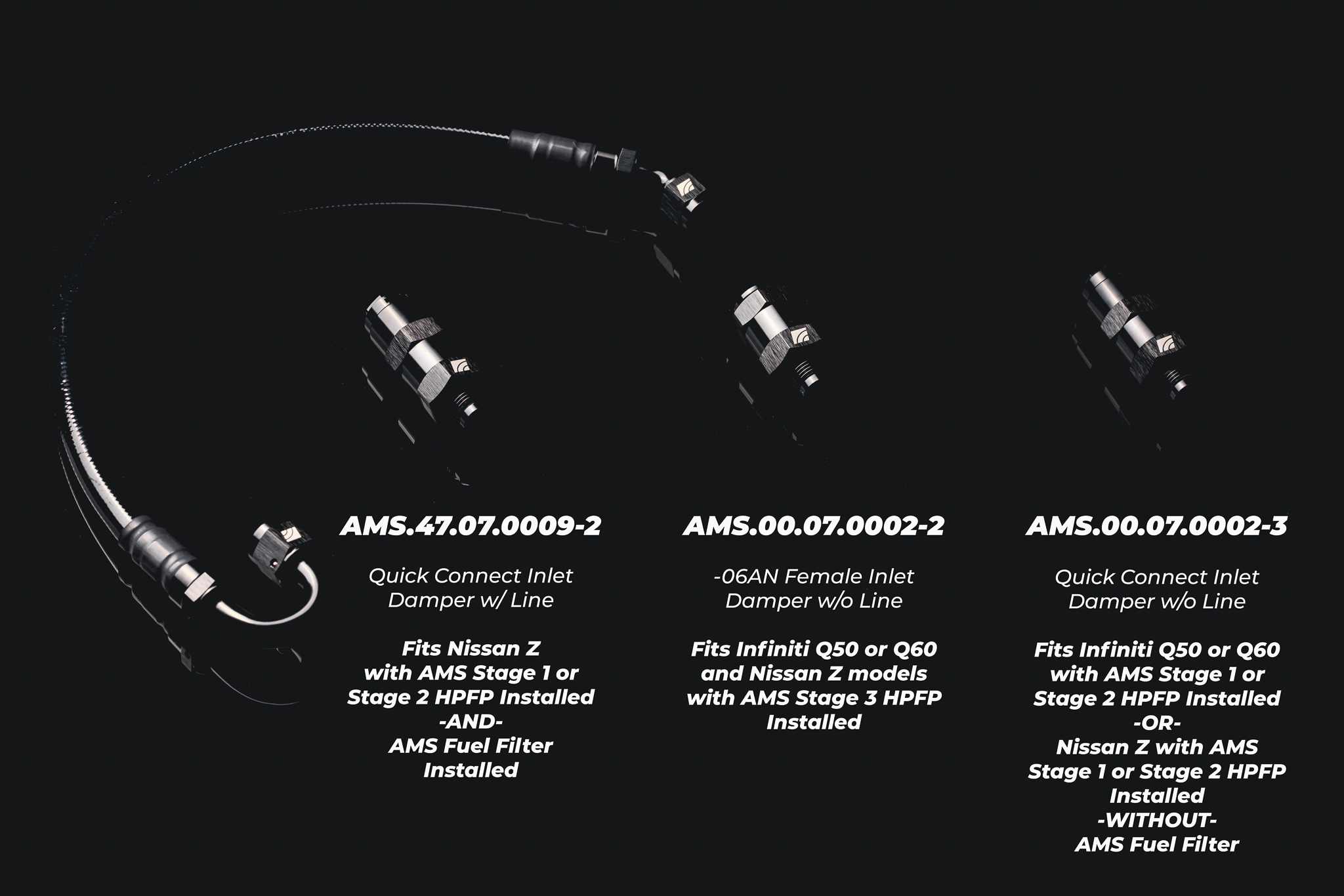

Fitment Guide
Infiniti Q50/Q60 w/ AMS Stage 1 High Pressure Fuel Pump: AMS.00.07.0002-3
Infiniti Q50/Q60 w/ AMS Stage 2 High Pressure Fuel Pump: AMS.00.07.0002-3
Infiniti Q50/Q60 w/ AMS Stage 3 High Pressure Fuel Pump: AMS.00.07.0002-2
Nissan Z w/ AMS Stage 1 High Pressure Fuel Pump and AMS Fuel Filter: AMS.47.07.0009-2
Nissan Z w/ AMS Stage 2 High Pressure Fuel Pump and AMS Fuel Filter: AMS.47.07.0009-2
Nissan Z w/ AMS Stage 3 High Pressure Fuel Pump and AMS Fuel Filter: AMS.00.07.0002-2
Nissan Z w/ AMS Stage 1 High Pressure Fuel Pump and -NO- AMS Fuel Filter: AMS.00.07.0002-3
Nissan Z w/ AMS Stage 2 High Pressure Fuel Pump and -NO- AMS Fuel Filter: AMS.00.07.0002-3
Nissan Z w/ AMS Stage 3 High Pressure Fuel Pump and -NO- AMS Fuel Filter: AMS.00.07.0002-2
Product Notes
- While the AMS Inline Fuel Pulsation Damper is technically a universal component, it was developed for, and has only been tested on, Nissan’s VR30DDTT engine with AMS Performance High Pressure Fuel Pump upgrades. Your fuel pulsation damping results may vary.
- The AMS Inline Fuel Pulsation Damper configuration has been optimized to fit with the AMS line of VR30DDTT High Pressure Fuel Pumps, fuel lines, filter kits, and other fuel system components. Usage of the AMS Inline Fuel Pulsation Damper with other brand fuel system components may require custom fitting or custom fuel line creation. Please reference our installation guide for general fitment recommendations for non-AMS component systems or universal installations.
- Warning: By purchasing this fuel system component you confirm that you have read and understand the following: Warning/Danger: Serious risk of fire, explosion, bodily injury including resulting death, and engine, vehicle, and other property damage. This fuel system component must be installed and removed only by a qualified motorsport technician. The technician also must be trained in how to install and remove this component from this specific vehicle. The technician must not participate in any activity that would be considered a catalyst for ignition while installing or removing this component and must read the installation instructions before installation or removal.
