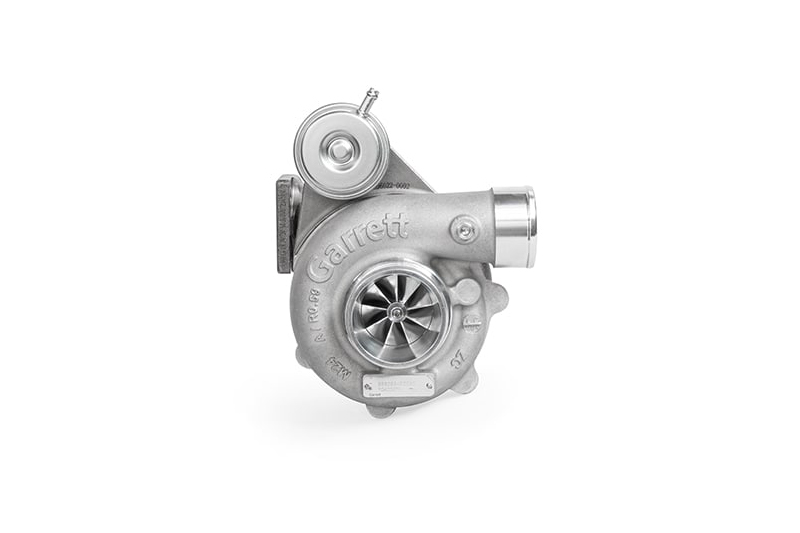

Garrett GBC22-350 Turbo Assembly w/Internal Wastegate


In Stock


SKU GRT.896055-5003S Category Brand:

California Residents: Prop 65 Warning

Additional information

Weight 30 lbs
Dimensions 12 × 12 × 12 in

CARB And / Or EPA Compliance Testing Not Completed

While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.

FREE SHIPPING on all orders over $199.99 in the lower 48. (Exclusions Apply)

With 23 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.

Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating. GBC22-350

  • 44mm compressor inducer | 56mm compressor exducer
  • Outline interchangeable with GBC 17 / 20
  • 150 –350 horsepower capability
  • Internal wastegate assembly with calibrated actuator
  • Billet compressor wheel with extended tip design for higher pressure ratio capability
  • GTX Gen II compressor aero with modern gasoline turbine wheel aero
  • Journal bearing rotating group
  • Engineered for small displacement engines including powersports, personal watercraft and automobiles

Compressor Aero

Forged, fully-machined compressor wheels with advanced aero is offered in 44mm inducer size and 56mm exducer. GBC22-350 can support from 200-350 horsepower. The compressor wheel is a 62 trim and the Compressor housing A/R is 0.59 A/R. This turbocharger can support up to 37 lbs/min of airflow and up to 3.5 pressure ratio.

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.

Journal Bearing Rotating Group

The oil cooled center housing features the latest generation of journal bearing rotor group.

Internally Wastegated

Club Line turbochargers are fully assembled with an internally wastegated turbine housing. Garrett’s technicians calibrate the actuator for optimum performance, eliminating any need for adjustment. Club Line turbochargers are calibrated with a 0.5 bar actuator. Actuators with higher pressure settings (1.0, 1.5 bar) are available for individual purchase.

Turbine Housing

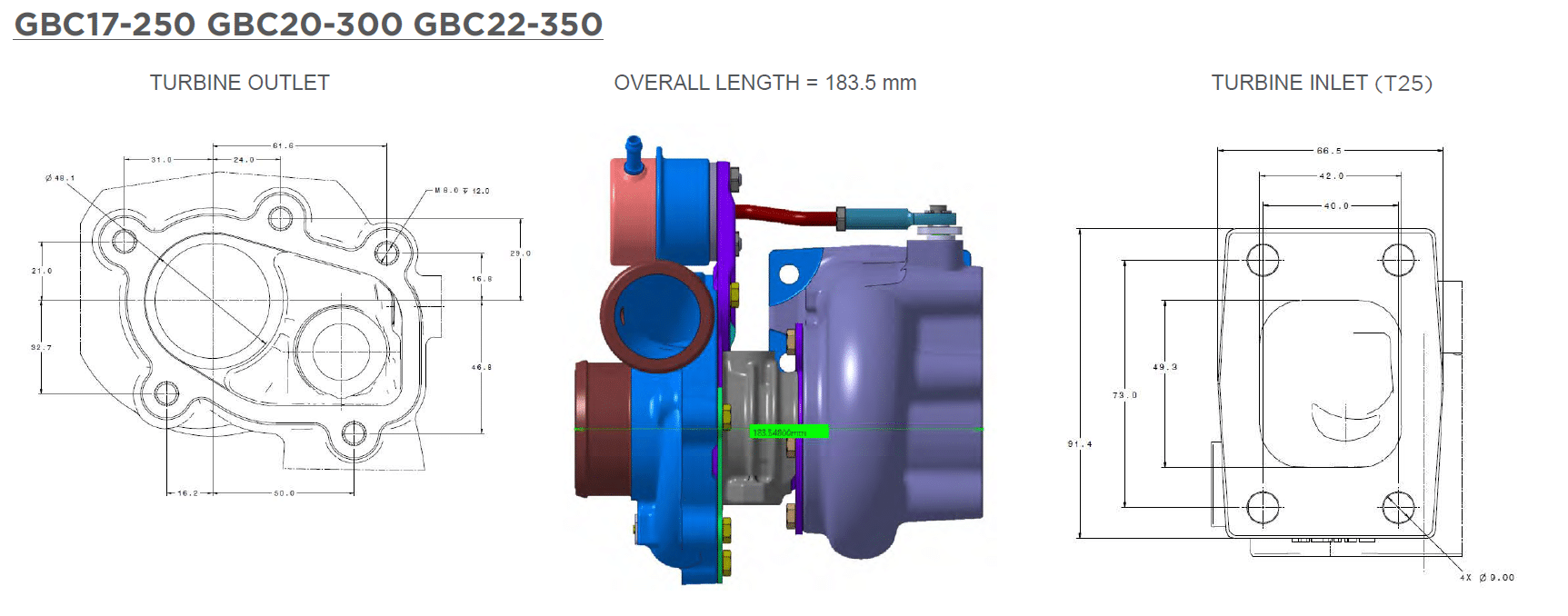

The GBC22-350 turbine housing inlet flange is standard T25 spec, and the outlet features a 5 bolt pattern. The 5 bolt outlet pattern is the same flange as the GT25 / GT28 turbos.

Compressor Housing Specs

The compressor housing outlet and inlet specs are the same at GT22 turbochargers.


GBC22-350 Compressor Turbine
HP: 200-350              Disp: 1.0L-2.5L Inducer Exducer A/R Inducer Exducer Trim AR
Turbo PN: 896055-5003S 44mm 56mm 0.59 50mm 46mm 84 0.64

The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.
