AMS Performance R8/Huracan Ice Tank

Improved cooling for your twin turbo intercooler system.

Original price was: $3,999.95.Current price is: $3,879.95.

-

SKU ALP.22.02.0001- Categories , Brand:

California Residents: Prop 65 Warning

Additional information

Weight N/A
Dimensions N/A
Vehicle Fitment

R8, Huracan

CARB And / Or EPA Compliance Testing Not Completed

While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.

Application(s):
2017-Current Audi R8 (Incl. Spyder, Plus, & Performance models) | 2015-Current Lamborghini Huracan (Incl. Spyder, Performante, & Evo models)
FREE SHIPPING on all orders over $199.99 in the lower 48. (Exclusions Apply)

With 23 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.

Adding a twin turbo system to your Audi R8 or Lamborghini Huracan can produce a massive amount of additional heat, especially for vehicles operating in hot climates. We developed our AMS Performance V10 Ice Tank system to not only improve consistency and performance at the drag strip by allowing you to add a full 20lb bag of ice, but to also improve the thermal characteristics on the street or road course. With it’s 3.8 gallon coolant capacity, the AMS Ice Tank adds much needed thermal stability and allows your supercar to consistently make the same power over an extended period of time without heat soaking. By adding an oversized water tank to the frunk, you add a significant amount of thermal capacity to the intercooler system allowing the car to make power safely, keeping charge air temps consistent and in a safe range. If you are serious about maximizing your vehicle’s thermal capabilities, the AMS Performance V10 Ice Tank for the Audi R8 and Lamborghini Huracan is the perfect choice.

  • 3.8 Gallon Capacity Tank
  • Increased Thermal Capacity for Improved Temperature Stability
  • Excellent Functionality for Vehicles in Hot Climates
  • Metal Bulkhead w/ AMS Ice Cube Graphic for a Clean Frunk Install
  • 6061 Aluminum Billet ALPHA Quick Cap Locking System for Easy On/Off
  • Can Accept a Full 20lb Bag of Ice
  • Replaces Standard In-Engine Bay Tank and Relocates EMP Pump to Frunk
  • Allows for Easy Mounting of Optional Fire Suppression System
  • Everything Engineered and Included for a Plug and Play Installation
  • 126% Water Volume Capacity Increase Over Standard Kit
  • Race-Proven on the ALPHA OMEGA Huracan, and AMS R8 Test Vehicles



Engineered to Win

The AMS Snailworks© Engineering Team has designed the AMS Performance Audi R8 / Lamborghini Huracan Ice Tank System to be a direct bolt-in install without hacking up your prized possession. Instead of creating a generic tank system that isn’t properly sized to fit the R8 and Huracan chassis, our team delivered a plug and play solution that mounts specifically inside the R8 and Huracan frunk and allows for a clean and refined installation. Utilizing a metal bulkhead plate to route water lines and a perfectly fit billet cap with quick release mechanism, our engineers have gone the extra mile to keep your supercar looking and performing like a supercar should.

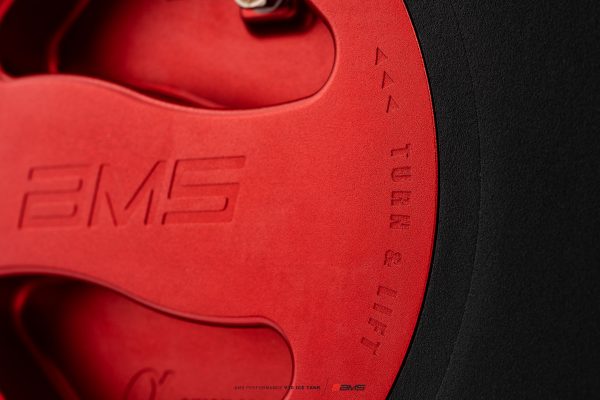

Easy Filling with ALPHA Quick Cap

The AMS Snailworks© Engineering Team wanted to make sure the physical operation of the tank was as premium as possible, which is why they have integrated a quick release style locking mechanism in place of a traditional screw-in design. The ALPHA Quick Cap design allows for fast and reliable opening and closing when in the staging lanes at the track, making refilling the tank a breeze. The entire billet cap is anodized for scratch and corrosion resistance, and fitted with a custom sized o-ring for a perfect leak-free seal.



Metal Bulkhead Keeps Your Water Lines Routed Properly

Our team has designed not only an aesthetically pleasing bulkhead, but one that incorporates extra expansion ports for two additional feed and return lines depending on your water line routing needs. We’ve got you covered with 1″ water hose ports at the bulkhead and -10AN and -8AN ORB ports on the tank, so you can design your own custom solution to allow for multiple pumps, or to bypass heat exchangers altogether if desired.

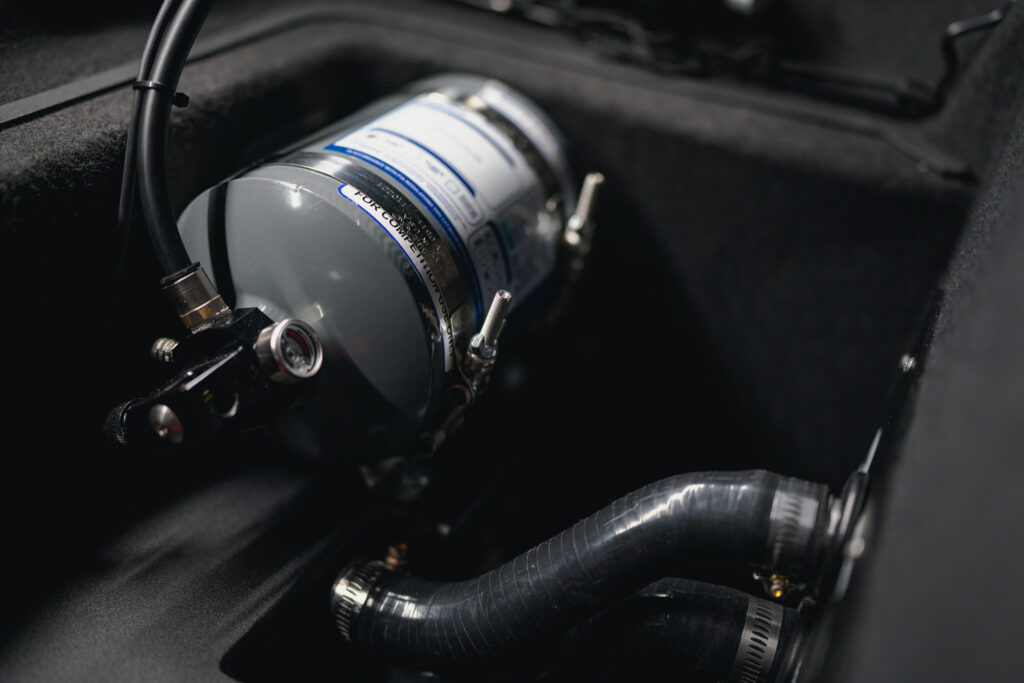

Provisions for Optional Fire Suppression System

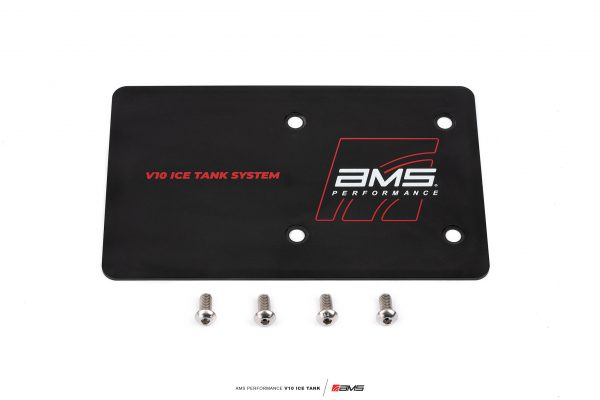

With extra space at a premium inside the R8 and Huracan frunk, our AMS Snailworks© Engineering Team knew they had to incorporate a mounting solution for customers wanting to run a fire suppression system. The 4 bolt holes on the top of the V10 Ice Tank have been designed to mount a SPA Technique 3lb bottle, available separately. Alternatively, if you are not utilizing a fire suppression system, these bolt locations can be used to mount our AMS V10 Ice Tank System logo plate, giving the system a finished and refined look.



AMS V10 Ice Tank Includes

  • AMS Ice Tank w/ Billet ALPHA Quick Cap
  • AMS Frunk Liner Bulkhead
  • AMS Wiring Harness for Pump Relocation to Frunk
  • All Necessary Water Lines, Fittings, & Hardware for Installation (excluding pump)

Applications

  • 2017-Current Audi R8 (Incl. Spyder, Plus, & Performance models)
  • 2015-Current Lamborghini Huracan (Incl. Spyder, Performante, & Evo models) (Does not fit STO)

Product Notes

  • The ice tank dimensions are altered for fitment between R8 and Huracan applications. Actual fluid volume capacities may vary slightly from specs listed.
  • Does not fit Huracan STO models.
  • Some modification may be required for fitment with non-AMS V10 twin turbo systems. AMS does not guarantee direct fitment with third party systems.
  • EMP Pump not included. (Reused from AMS ALPHA Twin Turbo Kit, Part Number: E2512A) All photos depicting a pump are for illustration purposes only.
  • SPA Technique Fire Suppression System not included. (Part Number: SPAex SFI3 E) All photos depicting a fire suppression system are for illustration purposes only.
