AMS Performance VR30DDTT Stage 3 High Pressure Fuel Pump Kit
CFD-optimized, E-85 compatible, and all laser welded stainless steel construction.
$2,589.95 – $2,675.90
-
California Residents: Prop 65 Warning
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
CARB And / Or EPA Compliance Testing Not Completed
While we believe this product is either CARB EO exemption applicable, or complies with the EPA's Anti-Tampering Policy, we have not completed the required testing and administrative process at this time. This product is not available to purchase for emissions-controlled vehicles located within the state of California, or available to ship to California addresses, without a completed AMS Race Waiver form. International users outside of the United States should act in accordance with their local laws and regulations.
With 22 years of documented research and development in the forced induction field, AMS Performance has proven itself as the powerhouse in the automotive aftermarket. Our award winning performance systems are what all others are measured by.
It’s simple, if you want to make more power you are going to need more fuel. The AMS Performance VR30DDTT Stage 3 High Pressure Fuel Pump Kit features high quality all stainless steel construction and is capable of fuel flow at over 405 liters per hour and allows for 240 bar of fuel pressure. Partnering with Nostrum High Performance, an industry leader in fuel system technology, we have been able to bring reliable high performance high pressure fueling solutions to the VR30 platform. The AMS Performance VR30DDTT Stage 3 High Pressure Fuel Pump allows for fuel flow supporting our ALPHA 6 or RA600 packages for the Nissan Z and Infiniti Q50/Q60, or for builds looking to maximize performance over 600 WHP on e85.
Suited for Max Effort ALPHA 6/RA600 Packages or Higher
Great for 600+ WHP Builds on E85
E-85 / Flex Fuel Compatible
Capable of Flowing Over 405 LPH
240 Bar Maximum Operating Pressure
CFD Optimized Design
All Stainless Steel Construction
Laser Welds Mean the Pump is Sealed with no Leaks
Limited Lifetime Warranty¹
Comes Fully Assembled
Mounting Flange and Electric Harness Adapter Included
Gas line shaping tool Included
Also Includes Installation Hardware
Utilizes OEM-type Low and High Pressure Fittings
Each Individual Unit is Flow Tested
Engineered to be the Best
We partnered with an industry leader in fuel systems, Nostrum High Performance, in the development of this component. For this reason our customers know that they can rely on our fuel pumps to be the best built, best performing on the market.
Through the use of Computational Fluid Dynamics (CFD) the AMS Performance VR30DDTT Stage 3 High Pressure Fuel Pump Kit mapping shows the optimized fuel flow trajectories. This high pressure pump flows an incredible 405 LPH!
The AMS VR30 pumps come fully assembled for a quick, bolt-on upgrade and uses all OEM type fuel fittings and electrical connectors. The AMS Performance VR30DDTT Stage 3 High Pressure Fuel Pump Kit utilizes OEM-type low and high pressure fittings. Each individual pump is flow tested to insure the ultimate in performance, and comes with comprehensive installation instructions. The pump has an incredible maximum pressure of 240 bar!
Put it to the Test
What sets this and every AMS component apart from the competition is our rigorous battery of tests. The AMS Performance VR30DDTT Stage 3 High Pressure Fuel Pump Kit has been tested in-house with countless 1/4 and 1/2 mile runs! In addition to this research and development testing, all AMS VR30 High Pressure Fuel Pumps are bench tested by Nostrum High Performance before shipping as part of their quality control process to ensure the highest level of durability. The best part — a Limited Lifetime Warranty¹ against manufacturer’s defects is included at no additional cost.

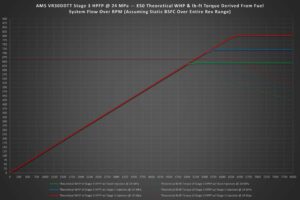

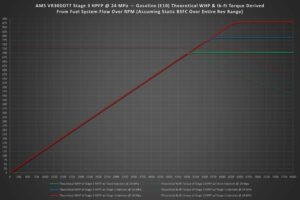

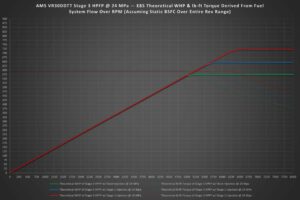

Below is a set of graphs showing theoretical maximum horsepower and torque capability of the VR30 Stage 3 HPFP on various fuel types with various injector combinations. This information is not necessarily indicative of the horsepower your vehicle will make, but is meant to show theoretical capability of the fuel system components.
Applications
- 2017+ INFINITI Q60 with 3.0L Twin Turbo VR30
- 2016+ INFINITI Q50 with 3.0L Twin Turbo VR30
- 2023+ Nissan Z (incl. all submodels)
Product Notes
- In order to take full advantage of our HPFP, specific calibrations to your ECU tune file will need to be made. Once the HPFP is installed, the engine will start and run, however a qualified engine calibrator must review datalogs to verify the engine is running properly! Please contact an AMS sales representative to discuss your ECU tuning needs by emailing [email protected]
- If the customer does not have the Red Alpha Flex Fuel kit an additional line is necessary and can be added via the drop down menu above or a custom -6AN male inlet can be fabricated.
- Select the AMS VR30 Stage 3 High Pressure Fuel Pump Kit Low Pressure Feed Line from the dropdown menu above if you do not currently have the Red Alpha Flex Fuel Kit (Only Needed for Customers Without the Red Alpha Flex Fuel Kit)
- Please be aware there are two separate instruction guide files available for this product. The first is a physical installation guide, and the second is a calibration quick-start guide.
¹ Limited Lifetime Warranty
- Nostrum High Performance warrants to the consumer that this product will be free from defects in materials and workmanship for the lifetime of the product. This Limited Lifetime Warranty is limited to the repair or replacement of the part. In no event shall the manufacturer be responsible for special, incidental or consequential damages or costs incurred due to failure of this product. Limited Lifetime Warranty claims to the manufacturer must be transportation prepaid and accompanied with dated proof of purchase. This Limited Lifetime Warranty applies only to the original purchaser of product and is non-transferable.
- Products will be repaired or replaced when determined by the manufacturer that the product failed because of defects in material or workmanship. Limited Lifetime Warranty explicitly excludes the cost of labor for product installation and removal, diagnostics, or troubleshooting.
- The Limited Lifetime Warranty covers manufacturing defects, but damage caused by foreign object debris, from other fuel line components or installation contamination, will not be covered under this limited warranty.
- No warranty, express or implied, shall extend to any product which has been subjected to misuse, neglect, accident, or improper storage or installation or which has been repaired, modified, altered, tampered with, misused, improperly installed, or used in an improper application. The manufacturer disclaims any liability for consequential damages due to breach of any written or implied warranty on all products made by the manufacturer.
- To begin the warranty process, you may contact an AMS Performance Customer Support Representative HERE. The below listed additional information will be required to process the Limited Lifetime Warranty claim and confirm eligibility to provide further warranty inspection.
– Original invoice, purchase date, and product installation date.
– Diagnostic information, testing data, codes, freeze data.
– ECU calibration file (if possible)
– Data logs of the event
– Full mod list including part specifics
– Persons / company that tuned the vehicle - Once approved, a Nostrum High Performance RMA form is required to be filled out and included with the returned part. Additional information may be required in order to test the failed component and process the claim. All approved components will be be shipped directly to Nostrum High Performance at the expense of the consumer for inspection and subsequent repair or replacement if deemed necessary.
- In the case that the product requires inspection performance testing and no damage, fault, or defect in operation is found, Nostrum High Performance, at its sole discretion, may apply a Test Service Charge of $125.00 USD and shipping will be the sole responsibility of the consumer. Payment of this fee directly to Nostrum High Performance is required prior to the return of the inspected product to the consumer.
- For further warranty information, please see nostrumshop.com/warranty
WARNING/DANGER: SERIOUS RISK OF FIRE, EXPLOSION, BODILY INJURY INCLUDING RESULTING DEATH, AND ENGINE, VEHICLE, AND OTHER PROPERTY DAMAGE. THIS FUEL PUMP MUST BE INSTALLED AND REMOVED ONLY BY A QUALIFIED MOTOR SPORTS TECHNICIAN. TECHNICIAN ALSO MUST BE TRAINED IN HOW TO INSTALL AND REMOVE THIS PUMP FROM THIS SPECIFIC VEHICLE. TECHNICIAN MUST NOT SMOKE OR PARTICIPATE IN ANY ACTIVITY THAT WOULD BE CONSIDERED A CATALYST FOR IGNITION WHILE INSTALLING OR REMOVING PUMP AND MUST READ THE INSTALLATION INSTRUCTIONS BEFORE INSTALLATION OR REMOVAL.
